7m³ Single Auger Vertical Stationary TMR Mixer For Medium Livestock Farms

Name: 7m³ Single Auger Vertical Stationary TMR Mixer For Medium Livestock Farms
Brand: Qingdao Youhong Livestock Machinery Co., Ltd.
SKU: FS07
Availability: InStock

Brand Name:	UHAND
Model Number:	FS07
MOQ:	1
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China, Shandong, Qingdao

Machine Weight:

2500 Kg

Volume:

7 M³

Motor Power:

15 KW

Number Of Augers:

Auger Speed:

23 R/min

Number Of Blades:

Highlight:

7m³ Stationary TMR Mixer

Single Auger Stationary TMR Mixer

Livestock Farms Vertical TMR Mixer

Product Description

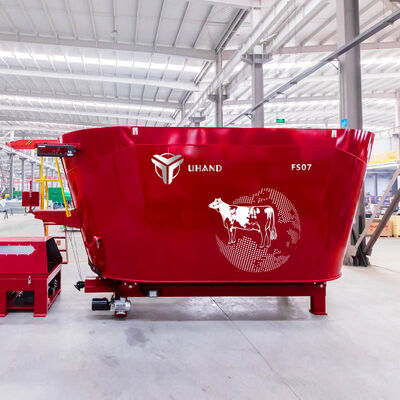

UHAND FS07 7 m³ Single-Auger Vertical Stationary TMR Feed Mixer

Designed for medium-sized livestock ranches and dairy farms, the UHAND FS07 delivers reliable daily feed preparation with optimal capacity and industrial-grade durability.

Place of Origin: China, Shandong, Qingdao
Brand: UHAND
Model: FS07
Min. Order: 1 Unit
Delivery Time: 30-60 days
Payment Terms: T/T

Product Overview

The UHAND FS07 is a robust 7 m³ stationary mixer designed to meet the daily feed preparation needs of medium-sized livestock operations. It balances increased capacity with the proven durability of the FS series, featuring our signature one-piece NM400 auger and heavy-duty construction. Engineered for reliability and consistent performance, the FS07 is an efficient workhorse that helps streamline feeding operations and support herd productivity.

Features & Benefits

Optimal Medium-Capacity Efficiency: 7 m³ volume ideal for medium-sized herds, providing excellent balance between batch size and operational flexibility
Durable Monolithic NM400 Auger Core: Single, integrally cast 20mm-thick NM400 steel auger for superior wear resistance and long operational lifespan
Reliable Direct-Drive Power: Dependable 15 kW electric motor with direct start for simple operation and robust performance
Enhanced Mixing Action: Seven tungsten carbide-coated blades operating at optimized 23 RPM for thorough ingredient incorporation
Rugged Construction: 20mm bottom and 8mm side NM400 steel plates withstand abrasive feedstuffs
Comprehensive Protective Finish: Complete surface preparation and 4-layer paint system for corrosion resistance

Application Scenarios

Medium-scale dairy and beef operations requiring reliable daily mixing for several hundred head of livestock
Farms looking to centralize feed preparation with a permanent, efficient mixing station
Operations that have outgrown smaller mixers and need increased capacity without excessive space or power requirements

Technical Specifications

Parameter	FS07
Overall Dimensions (L x W x H)	3150 x 2300 x 2470 mm
Machine Weight	2500 kg
Volume	7 m³
Motor Power	15 kW
Motor Drive Type	Direct Start
Number of Augers	1
Auger Thickness	20 mm
Auger Speed	23 r/min
Number of Blades	7
Blade Material	65Mn, Tungsten Carbide Coated
Cylinder Bottom Plate Thickness	20 mm
Cylinder Side Plate Thickness	8 mm

*NM400 is a Chinese national standard high-strength wear-resistant steel, equivalent in performance to HARDOX 400 and AR400.

Specialized Material

The machine is constructed from NM400 structural steel, specifically engineered for demanding

agricultural mixing applications. This material delivers an optimal balance of strength, toughness, and fatigue resistance, enabling it to withstand continuous high-friction wear from silage, coarse feed, and other abrasive ingredients, while effectively resisting corrosion and heavy-duty impacts.

Compared with high-hardness steels commonly used in other industries, NM400 steel maintains excellent wear resistance without the risk of brittle fracture. This ensures long-term stable operation and consistent mixing performance, serving as a core material guarantee for the extended durability and reliability of agricultural machinery.

7m³ Single Auger Vertical Stationary TMR Mixer For Medium Livestock Farms 1

7m³ Single Auger Vertical Stationary TMR Mixer For Medium Livestock Farms 2

Frequently Asked Questions

What makes the FS07 suitable for a "medium" sized operation?

The 7 m³ capacity is efficiently matched to the daily feed volume required for herds in the medium size range (e.g., 150-300 cattle). It provides enough volume to minimize repetitive mixing cycles while remaining manageable in terms of power, footprint, and investment.

Can the mixing time be adjusted or automated?

The standard model is controlled manually. For automated operation, optional timers or integration into a central control system can be provided to set precise mixing durations, improving consistency and labor efficiency.

How does the slower auger speed (23 RPM) affect mixing?

The optimized 23 RPM speed is designed for thorough blending and gentle handling of feed. It provides ample mixing action while reducing shear force, which helps maintain desired particle length in forages and prevents over-processing of the ration.

What are the installation requirements?

Installation requires a level, solid concrete foundation capable of supporting the machine's weight (2500 kg). Adequate space around the mixer for loading and unloading, along with the correct three-phase power connection (for the 15 kW motor), is essential.
