16m³ Capacity TMR Vertical Mixer With 2 Augers High Efficiency

Name: 16m³ Capacity TMR Vertical Mixer With 2 Augers High Efficiency
Brand: Qingdao Youhong Livestock Machinery Co., Ltd.
SKU: 2PS-16
Availability: InStock

Brand Name:	UHAND
Model Number:	2PS-16
MOQ:	1
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China, Shandong, Qingdao

Machine Weight:

6860 Kg

Volume:

16 M³

Motor Power:

45 KW

Number Of Augers:

Auger Speed:

24 R/min

Number Of Blades:

Highlight:

16 m³ Capacity TMR Vertical Mixer

2 Augers TMR Vertical Mixer

High Efficiency Vertical Feed Mixer

Product Description

16 m³ Dual-Auger Vertical Stationary TMR Feed Mixer NM400 Steel

Designed for large-scale livestock ranches and dairy farms requiring superior mixing performance and efficiency.

General Information

Place of Origin: China, Shandong, Qingdao
Brand: UHAND
Model: 2PS-16
Minimum Order: 1 Unit
Delivery Time: 30-60 days
Payment Terms: T/T

Product Overview

The UHAND 2PS-16 features an advanced dual-auger system within the PS series, offering 16 m³ capacity. This configuration delivers ultrafast mixing times and superior blend homogeneity through two synchronized NM400 augers, making it ideal for large-scale producers prioritizing speed and exceptional feed consistency.

Features & Benefits

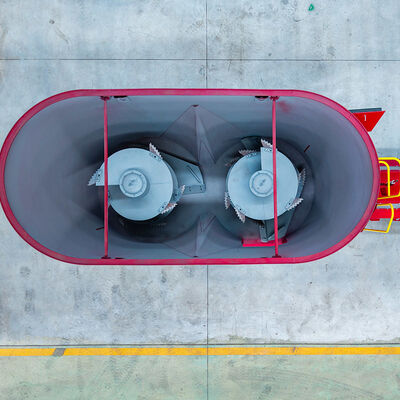

Dual-Auger Mixing Superiority: Two integrally cast NM400 steel augers work in tandem to reduce mixing cycle times and achieve unparalleled blend uniformity for consistent nutritional content.
High-Efficiency VFD Driven Power: 45 kW motor with VFD control provides smooth, controlled power to both augers, optimizing energy use with soft-start benefits.

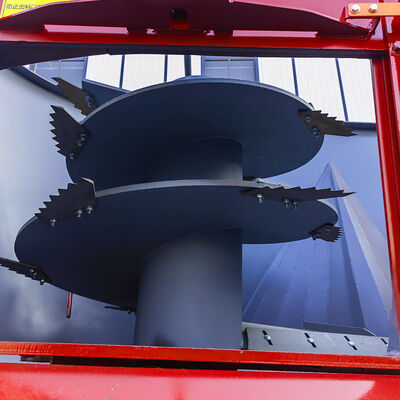

Enhanced Mixing & Cutting Action: 14 tungsten carbide-coated blades (7 per auger) deliver aggressive processing of all ingredients, including long fibrous materials.
All the Durability of the PS Series: Professional-grade construction with 10mm sidewalls, 20mm bottom plate, and long-lasting monolithic NM400 augers.
Optimized for High-Throughput Operations: Fast mixing cycles maximize daily output to meet the demands of large herds.

Application Scenarios

Perfect for large-scale dairies and feedlots where minimizing mixing time is crucial for operational workflow and labor efficiency.
Ideal for operations using diverse feed ingredients requiring exceptionally thorough and rapid incorporation.
Excellent upgrade for producers seeking mixing quality and speed advantages of a dual-auger system within the 16 m³ capacity range.

Technical Specifications

Parameter	2PS-16
Overall Dimensions (L x W x H)	5500 x 2540 x 2480 mm
Machine Weight	6860 kg
Volume	16 m³
Motor Power	45 kW
Motor Drive Type	Frequency Conversion Start (VFD)
Number of Augers	2
Auger Thickness	20 mm
Auger Speed	24 r/min
Number of Blades	14
Blade Material	65Mn, Tungsten Carbide Coated
Cylinder Bottom Plate Thickness	20 mm
Cylinder Side Plate Thickness	10 mm

*NM400 is a Chinese national standard high-strength wear-resistant steel, equivalent in performance to HARDOX 400 and AR400.

Specialized Material

The machine is constructed from NM400 structural steel, specifically engineered for demanding

agricultural mixing applications. This material delivers an optimal balance of strength, toughness, and fatigue resistance, enabling it to withstand continuous high-friction wear from silage, coarse feed, and other abrasive ingredients, while effectively resisting corrosion and heavy-duty impacts.

Compared with high-hardness steels commonly used in other industries, NM400 steel maintains excellent wear resistance without the risk of brittle fracture. This ensures long-term stable operation and consistent mixing performance, serving as a core material guarantee for the extended durability and reliability of agricultural machinery.

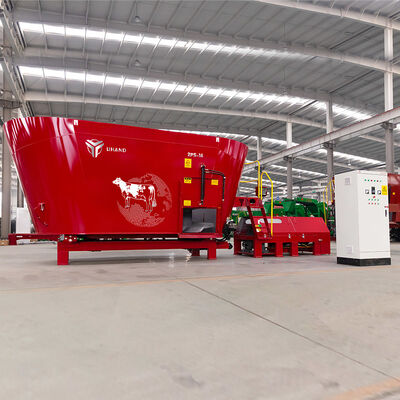

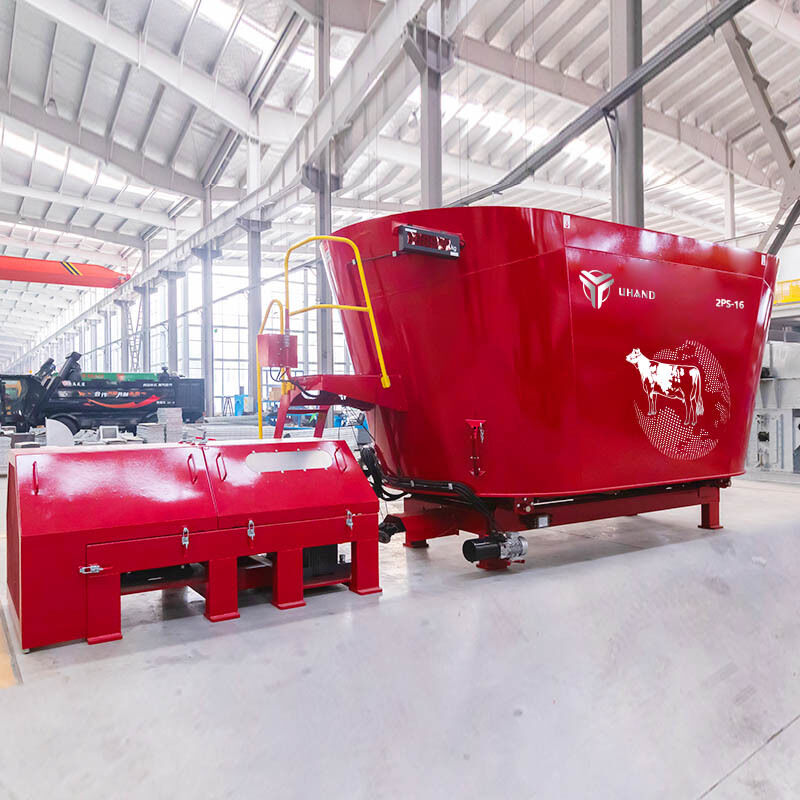

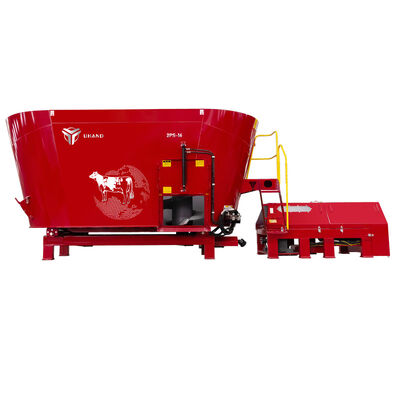

16m³ Capacity TMR Vertical Mixer With 2 Augers High Efficiency 1

16m³ Capacity TMR Vertical Mixer With 2 Augers High Efficiency 2

Frequently Asked Questions

What is the main difference between the PS-16 and the 2PS-16?

The key difference is the auger system. The PS-16 has a single auger, while the 2PS-16 has two. The dual-auger 2PS-16 typically offers faster mixing times and can achieve a marginally higher degree of blend uniformity, especially for complex rations, but may have a slightly higher initial cost.

Does the dual-auger system require more maintenance?

The dual-auger system is built to the same robust standards. While there are two augers and associated gearboxes, the design is engineered for reliability. Maintenance involves similar procedures (checking blades, lubrication) but for two sets of components. The long-life NM400 construction helps minimize wear-related issues.

Is the 2PS-16 much larger than the single-auger PS-16?

As seen in the specifications, the 2PS-16 has a longer footprint (5500mm vs. 4100mm) to accommodate the two augers. It's important to consider this when planning your feed room or mixing station layout.
