Dual Auger Stationary TMR Mixer 18m³ Volume For Large Scale Livestock Ranches
Place of Origin:
China, Shandong, Qingdao
Brand Name:
UHAND
Model Number:
2PS-18
Minimum Order Quantity:
1
Payment Terms:
T/T
Specifications
| Machine Weight: | 7200 Kg | Volume: | 18 M³ |
| Motor Power: | 55 KW | Number of Augers: | 2 |
| Auger Speed: | 26 R/min | Number of Blades: | 18 |
| High Light: | 18 m³ Volume Stationary TMR Mixer,Dual Auger Stationary TMR Mixer,Large Ranches TMR Feed Mixer |
||
Product Description
18 m³ Dual-Auger Vertical Stationary TMR Feed Mixer Model: 2PS-18 | Designed for Large-Scale Livestock Ranches and Dairy Farms Product Overview The UHAND 2PS-18 is a high-performance 18 m³ stationary mixer engineered for large-scale operations requiring exceptional efficiency and superior mixing ...

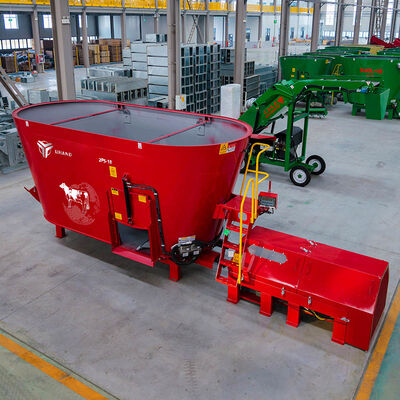

18 m³ Dual-Auger Vertical Stationary TMR Feed Mixer
Model: 2PS-18 | Designed for Large-Scale Livestock Ranches and Dairy Farms
Product Overview
The UHAND 2PS-18 is a high-performance 18 m³ stationary mixer engineered for large-scale operations requiring exceptional efficiency and superior mixing quality. Featuring a powerful dual-auger system driven by a 55 kW VFD motor, this mixer significantly reduces batch cycle times while ensuring perfect blend uniformity. Built with professional-grade durability using NM400 steel, it serves as a reliable, high-output cornerstone for advanced feeding operations.
Key Features & Benefits
- Fast-Cycle Dual-Auger Mixing: Two synchronized NM400 steel augers deliver rapid, thorough mixing for large 18 m³ batches, ensuring perfect feed consistency and reduced preparation time.
- High-Torque VFD Drive System: 55 kW motor with Variable Frequency Drive provides soft starts, energy efficiency, and precise speed control for different ration types.
- Enhanced Mixing with 18 Blades: Features 18 tungsten carbide-coated blades (9 per auger) for fast, homogeneous incorporation of all ingredients, including tough fibrous materials.
- Professional Construction: Heavy-duty 10mm sidewalls and 20mm bottom plate made of NM400 steel ensure long-term structural integrity under continuous high-volume use.
- Optimized Productivity: Large capacity combined with fast mixing cycles maximizes feed center throughput to support substantial herd nutritional needs.
Technical Specifications
| Parameter | 2PS-18 |
|---|---|
| Overall Dimensions (L x W x H) | 6000 x 2540 x 2650 mm |
| Machine Weight | 7200 kg |
| Volume | 18 m³ |
| Motor Power | 55 kW |
| Motor Drive Type | Frequency Conversion Start (VFD) |
| Number of Augers | 2 |
| Auger Thickness | 20 mm |
| Auger Speed | 26 r/min |
| Number of Blades | 18 |
| Blade Material | 65Mn, Tungsten Carbide Coated |
| Cylinder Bottom Plate Thickness | 20 mm |
| Cylinder Side Plate Thickness | 10 mm |
Application Scenarios
- Ideal for large commercial dairies and beef feedlots where minimizing feed preparation time is critical to daily operational flow.
- Perfect for operations requiring the highest standard of mixing uniformity for optimized animal health and performance.
- Excellent fit for modern feed mills or central kitchens serving multiple barns or large contiguous operations.
Frequently Asked Questions
What is the primary advantage of the dual-auger design in a stationary mixer?
The dual-auger design's main advantage is significantly faster and more homogeneous mixing. The two augers create more vigorous and complete blending action than a single auger, reducing total cycle time and ensuring perfect ration uniformity.
Why does the 2PS-18 have a higher auger speed (26 RPM) than the 2PS-16 (24 RPM)?
The slightly increased speed is calibrated for the 18 m³ capacity to maintain optimal mixing dynamics and batch cycle efficiency. The VFD allows this speed to be adjusted if needed for specific recipes.
Is the 55 kW motor sufficient to power two augers?
Yes, the 55 kW motor is specifically sized and paired with an appropriate gearbox to provide ample torque to drive both heavy-duty NM400 augers effectively, even under full load with dense rations.
General Information
Place of Origin: China, Shandong, Qingdao
Brand: UHAND
Model: 2PS-18
Minimum Order: 1 Unit
Delivery Time: 30-60 days
Payment Terms: T/T
Brand: UHAND
Model: 2PS-18
Minimum Order: 1 Unit
Delivery Time: 30-60 days
Payment Terms: T/T
*NM400 is a Chinese national standard high-strength wear-resistant steel, equivalent in performance to HARDOX 400 and AR400.
Specialized Material
The machine is constructed from NM400 structural steel, specifically engineered for demanding
agricultural mixing applications. This material delivers an optimal balance of strength, toughness, and fatigue resistance, enabling it to withstand continuous high-friction wear from silage, coarse feed, and other abrasive ingredients, while effectively resisting corrosion and heavy-duty impacts.
Compared with high-hardness steels commonly used in other industries, NM400 steel maintains excellent wear resistance without the risk of brittle fracture. This ensures long-term stable operation and consistent mixing performance, serving as a core material guarantee for the extended durability and reliability of agricultural machinery.
