9m³ Volume Stationary TMR Feed Mixer Machine 22kW For Medium Scale Livestock Farms

Name: 9m³ Volume Stationary TMR Feed Mixer Machine 22kW For Medium Scale Livestock Farms
Brand: Qingdao Youhong Livestock Machinery Co., Ltd.
SKU: FS09
Availability: InStock

Brand Name:	UHAND
Model Number:	FS09
MOQ:	1
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China, Shandong, Qingdao

Machine Weight:

2900 Kg

Volume:

9 M³

Motor Power:

22 KW

Number Of Augers:

Auger Speed:

24 R/min

Number Of Blades:

Highlight:

9m³ TMR Feed Mixer Machine

TMR Feed Mixer Machine 22kW

22kW tmr vertical mixer

Product Description

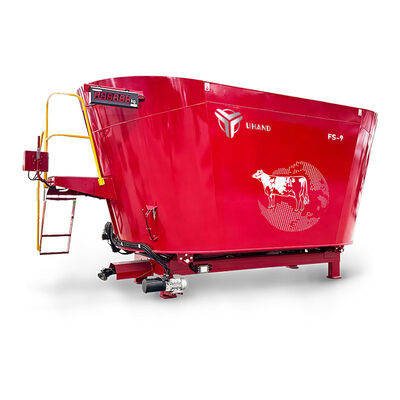

9 m³ Single-Auger Vertical Stationary TMR Feed Mixer

Model: FS09 | Brand: UHAND | Origin: China, Shandong, Qingdao

Product Overview

The UHAND FS09 is a high-capacity 9 m³ stationary mixer engineered for productive medium-scale operations. Representing the upper range of the standard FS series, it delivers significant batch volume with a more powerful motor to maintain mixing efficiency. Built with focus on durability and reliable performance, the FS09 is designed as a long-term, dependable asset for farms requiring consistent, high-quality TMR preparation.

Key Features & Benefits

High-Volume Mixing: 9 m³ capacity efficiently serves larger medium-scale herds, reducing mixing cycles and optimizing daily feeding labor
Increased Power: Robust 22 kW direct start motor provides ample torque for dense, large-volume rations
Superior Durability: Single integrally cast 20mm NM400 steel auger ensures exceptional wear resistance and structural longevity
Optimized Mixing: Nine tungsten carbide-coated blades operating at 24 RPM deliver aggressive yet balanced mixing action
Heavy-Duty Construction: 20mm bottom and 8mm side NM400 steel plates withstand continuous use
Advanced Corrosion Protection: Complete surface treatment with shot blasting and 4-layer paint system for maximum protection

Application Scenarios

Ideal for well-established medium-scale dairy and beef operations with substantial daily feed requirements. Perfect for farms seeking to maximize batch size within the single-auger, direct-drive stationary mixer category. Suitable for centralized feeding setups where reliability, capacity, and low maintenance are prioritized.

Technical Specifications

Parameter	FS09
Overall Dimensions (L x W x H)	3500 x 2540 x 2650 mm
Machine Weight	2900 kg
Volume	9 m³
Motor Power	22 kW
Motor Drive Type	Direct Start
Number of Augers	1
Auger Thickness	20 mm
Auger Speed	24 r/min
Number of Blades	9
Blade Material	65Mn, Tungsten Carbide Coated
Cylinder Bottom Plate Thickness	20 mm
Cylinder Side Plate Thickness	8 mm

Frequently Asked Questions

Why does the FS09 have a more powerful motor than the FS07/FS08?

The increased power (22 kW) is necessary to provide sufficient torque to the larger 20mm auger for mixing the full 9 m³ batch efficiently, especially when dealing with dense or fibrous ingredients, ensuring consistent cycle times and mix quality.

Is the 9 m³ capacity a significant step up from an 8 m³ model?

While seemingly incremental, the extra 1 m³ per batch can lead to reduced total cycles over a week or month, contributing to time and energy savings. It's a practical upgrade for operations at the cusp of outgrowing smaller capacities.

Can this model be started under load?

The direct start system is designed for standard start-up with an empty or lightly loaded mixer for optimal motor life. We recommend starting the mixer before adding major ingredients.

What electrical supply specifications are needed?

A three-phase power supply compatible with a 22 kW direct start motor is required. Please consult our technical specifications for voltage and amperage details based on your region.

Minimum Order: 1 Unit
Delivery Time: 30-60 days
Payment Terms: T/T

*NM400 is a Chinese national standard high-strength wear-resistant steel, equivalent in performance to HARDOX 400 and AR400.

Specialized Material

The machine is constructed from NM400 structural steel, specifically engineered for demanding

agricultural mixing applications. This material delivers an optimal balance of strength, toughness, and fatigue resistance, enabling it to withstand continuous high-friction wear from silage, coarse feed, and other abrasive ingredients, while effectively resisting corrosion and heavy-duty impacts.

Compared with high-hardness steels commonly used in other industries, NM400 steel maintains excellent wear resistance without the risk of brittle fracture. This ensures long-term stable operation and consistent mixing performance, serving as a core material guarantee for the extended durability and reliability of agricultural machinery.

9m³ Volume Stationary TMR Feed Mixer Machine 22kW For Medium Scale Livestock Farms 1

9m³ Volume Stationary TMR Feed Mixer Machine 22kW For Medium Scale Livestock Farms 2
