24m³ Stationary TMR Mixer Machine With 75kW VFD Motor High Productivity

Name: 24m³ Stationary TMR Mixer Machine With 75kW VFD Motor High Productivity
Brand: Qingdao Youhong Livestock Machinery Co., Ltd.
SKU: 2PS-24
Availability: InStock

Brand Name:	UHAND
Model Number:	2PS-24
MOQ:	1
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China, Shandong, Qingdao

Machine Weight:

8400 Kg

Volume:

24 M³

Motor Power:

75 KW

Number Of Augers:

Auger Speed:

31 R/min

Number Of Blades:

Highlight:

24m³ Stationary TMR Mixer

24m³ TMR Mixer machine

75kW Stationary TMR Mixer

Product Description

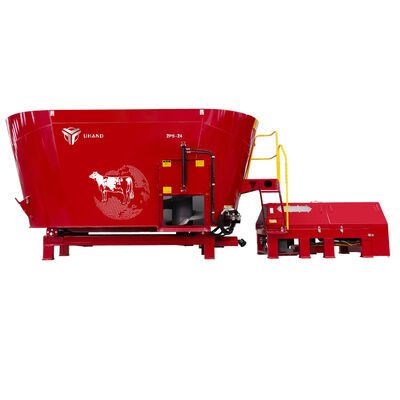

24 m³ Dual-Auger Vertical Stationary TMR Feed Mixer NM400 Steel

Designed for high-output livestock ranches and dairy farms requiring maximum capacity and reliability.

General Information

Place of Origin: China, Shandong, Qingdao
Brand: UHAND
Model: 2PS-24
Min. Order: 1 Unit
Delivery Time: 30-60 days
Payment Terms: T/T

Product Overview

The UHAND 2PS-24 represents the pinnacle of the PS series, offering maximum dual-auger stationary capacity at 24 m³. Engineered for intensive, high-output livestock operations worldwide, it delivers exceptional batch size combined with superior dual-shaft mixing performance. Powered by a high-efficiency 75 kW VFD system, this mixer serves as the ultra-reliable, high-productivity core of world-class feeding operations.

Features & Benefits

Maximum PS Series Capacity: Delivers the largest batch size (24 m³) in the dual-auger PS series, minimizing daily mixing cycles for mega-scale operations
High-Efficiency 75 kW VFD Powertrain: Powerful motor with advanced VFD control provides abundant torque while ensuring energy-efficient operation and system protection
Optimized High-Speed Mixing: Operates at 31 RPM with 20 durable blades for fast, thorough mixing cycles at maximum capacity
Heavy-Duty Engineering: Over-engineered components including monolithic NM400 augers and reinforced steel construction ensure reliability in 24/7 operational environments
Ultimate Feed Center Centerpiece: Designed as the primary production unit for large feed manufacturing facilities, offering unmatched output and consistency

Application Scenarios

Definitive solution for mega-dairies, large-scale beef feedlots, and industrial farming operations
Ideal for central feed processing plants supplying multiple farms or large geographical areas
Built for operations where equipment scale, reliability, and output directly impact business profitability

Technical Specifications

Parameter	2PS-24
Overall Dimensions (L x W x H)	7800 x 2600 x 2930 mm
Machine Weight	8400 kg
Volume	24 m³
Motor Power	75 kW
Motor Drive Type	Frequency Conversion Start (VFD)
Number of Augers	2
Auger Thickness	20 mm
Auger Speed	31 r/min
Number of Blades	20
Blade Material	65Mn, Tungsten Carbide Coated
Cylinder Bottom Plate Thickness	20 mm
Cylinder Side Plate Thickness	10 mm

*NM400 is a Chinese national standard high-strength wear-resistant steel, equivalent in performance to HARDOX 400 and AR400.

Specialized Material

The machine is constructed from NM400 structural steel, specifically engineered for demanding

agricultural mixing applications. This material delivers an optimal balance of strength, toughness, and fatigue resistance, enabling it to withstand continuous high-friction wear from silage, coarse feed, and other abrasive ingredients, while effectively resisting corrosion and heavy-duty impacts.

Compared with high-hardness steels commonly used in other industries, NM400 steel maintains excellent wear resistance without the risk of brittle fracture. This ensures long-term stable operation and consistent mixing performance, serving as a core material guarantee for the extended durability and reliability of agricultural machinery.

24m³ Stationary TMR Mixer Machine With 75kW VFD Motor High Productivity 1

24m³ Stationary TMR Mixer Machine With 75kW VFD Motor High Productivity 2

Frequently Asked Questions

What kind of operation justifies investing in a 24 m³ stationary mixer like the 2PS-24?

This mixer is designed for the largest and most intensive operations, typically those with several thousand head of livestock. The justification comes from transformative economies of scale in feed preparation, drastically reducing per-ton mixing costs, labor, and time at this volume.

Why the significant increase in motor power (75 kW) for the 2PS-24?

The 75 kW motor is essential to provide the immense torque required to drive two large augers through a full 24 m³ of dense feed at the higher operational speed (31 RPM). This ensures mixing cycles remain efficient and the mechanical system is not over-stressed.

Is the faster auger speed (31 RPM) beneficial for all types of feed?

The higher speed is excellent for achieving fast, homogeneous blends. The VFD provides flexibility; if a specific, more delicate ration requires gentler handling, the speed can be reduced. This versatility is a key advantage of the VFD system.
