8m³ Capacity Steel Construction Stationary TMR Mixer With 15KW Direct Start Motor

Name: 8m³ Capacity Steel Construction Stationary TMR Mixer With 15KW Direct Start Motor
Brand: Qingdao Youhong Livestock Machinery Co., Ltd.
SKU: FS08
Availability: InStock

Brand Name:	UHAND
Model Number:	FS08
MOQ:	1
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China, Shandong, Qingdao

Machine Weight:

2900 Kg

Volume:

8 M³

Motor Power:

15 KW

Number Of Augers:

Auger Speed:

23 R/min

Number Of Blades:

Highlight:

8m³ Stationary TMR Mixer

Steel Construction Stationary TMR Mixer

15KW TMR Feed Mixer

Product Description

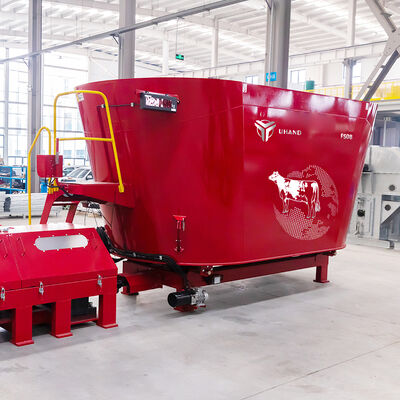

UHAND FS08 8 m³ Single-Auger Vertical Stationary TMR Feed Mixer

General Information

Place of Origin: China, Shandong, Qingdao
Brand: UHAND
Model: FS08
Minimum Order: 1 Unit
Delivery Time: 30-60 days
Payment Terms: T/T

Product Overview

The UHAND FS08 offers a solid 8 m³ capacity, positioning it as a key asset for medium-scale operations seeking to enhance their feeding efficiency. It embodies the FS series' commitment to durability through its monolithic NM400 auger and robust build quality. This mixer is designed for producers who need dependable, day-in-day-out performance to prepare consistent, high-quality rations for their growing herds.

Features & Benefits

Increased Batch Size for Efficiency: The 8 m³ capacity allows for preparing larger batches of TMR, optimizing the time and labor involved in the daily feeding process for medium-scale farms.
Long-Life, Monolithic Auger Design: Features the same durable, one-piece 20mm NM400 steel auger construction, ensuring exceptional resistance to wear and contributing to a lower total cost of ownership over time.
Dependable Direct-Start Motor: Utilizes a reliable 15 kW direct start motor, providing sufficient power for effective mixing while maintaining operational simplicity and ease of maintenance.
Effective Mixing with Seven Blades: Seven hardened, tungsten carbide-coated blades work at 23 RPM to deliver a consistent and homogeneous mix, crucial for animal health and performance.
Strong and Stable Construction: Built with a sturdy frame and NM400 steel panels (20mm bottom, 8mm sides), the FS08 is made to handle the physical demands of regular loading and mixing.
Factory-Applied Corrosion Defense: Protected by our proprietary surface treatment process, which includes shot blasting and a multi-layer paint application, ensuring longevity even in humid or corrosive conditions.

Application Scenarios

An excellent fit for established medium-scale dairy and beef operations with consistent, high-volume daily feeding requirements.
Suitable for farms implementing a centralized feeding system where a reliable stationary mixer is the core component.
Ideal for operations that value equipment longevity and seek to minimize downtime with a robustly built machine.

Technical Specifications

Parameter	FS08
Overall Dimensions (L x W x H)	3250 x 2300 x 2760 mm
Machine Weight	2900 kg
Volume	8 m³
Motor Power	15 kW
Motor Drive Type	Direct Start
Number of Augers	1
Auger Thickness	20 mm
Auger Speed	23 r/min
Number of Blades	7
Blade Material	65Mn, Tungsten Carbide Coated
Cylinder Bottom Plate Thickness	20 mm
Cylinder Side Plate Thickness	8 mm

Frequently Asked Questions

How does the FS08's capacity benefit my feeding routine?

The 8 m³ capacity means you can prepare more feed per batch. This translates to fewer total mixing cycles per day, saving time, reducing energy consumption, and allowing your staff to focus on other important tasks.

Is the motor powerful enough to handle dense rations at full capacity?

Yes, the 15 kW motor is specified to provide adequate torque for the single auger to mix dense and fibrous rations effectively, even when the mixer is fully loaded to its 8 m³ capacity.

What maintenance does the drive system require?

The direct drive system is designed for low maintenance. Regular visual inspections, checking electrical connections, and following the recommended lubrication schedule for bearings (as outlined in the manual) are the primary requirements.

Can this mixer be fitted with loading conveyors or other accessories?

Yes. The FS08 can be integrated into a more automated system. We can provide or recommend compatible loading conveyors, weighing systems, and control interfaces to create a customized feed preparation center.

*NM400 is a Chinese national standard high-strength wear-resistant steel, equivalent in performance to HARDOX 400 and AR400.

Specialized Material

The machine is constructed from NM400 structural steel, specifically engineered for demanding

agricultural mixing applications. This material delivers an optimal balance of strength, toughness, and fatigue resistance, enabling it to withstand continuous high-friction wear from silage, coarse feed, and other abrasive ingredients, while effectively resisting corrosion and heavy-duty impacts.

Compared with high-hardness steels commonly used in other industries, NM400 steel maintains excellent wear resistance without the risk of brittle fracture. This ensures long-term stable operation and consistent mixing performance, serving as a core material guarantee for the extended durability and reliability of agricultural machinery.
