21m³ Dual Auger Truck Mounted TMR Mixer For Large Livestock Farms

Name: 21m³ Dual Auger Truck Mounted TMR Mixer For Large Livestock Farms
Brand: Qingdao Youhong Livestock Machinery Co., Ltd.
SKU: 2TRK-21
Availability: InStock

Brand Name:	UHAND
Model Number:	2TRK-21
MOQ:	1
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China, Shandong, Qingdao

Machine Weight:

12000 Kg

Effective Mixing Capacity:

21 M³

Number Of Blades:

Blade Material:

65Mn, Tungsten Carbide Coated

Chassis Ground Clearance (Full Load):

245 Mm

Minimum Turning Radius:

12500 Mm

Highlight:

21m³ Truck mounted TMR Mixer

Dual Auger Truck Mounted TMR Mixer

Livestock Farms tmr mixer truck

Product Description

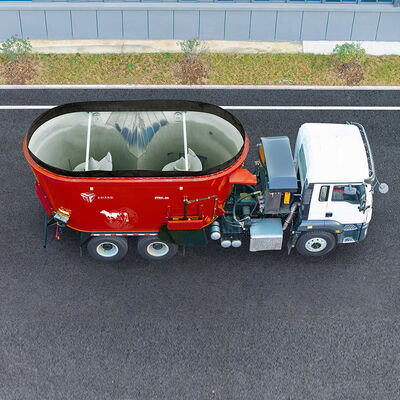

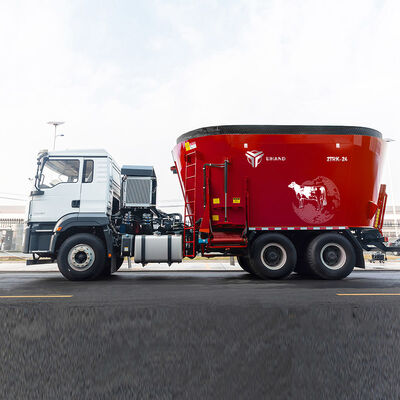

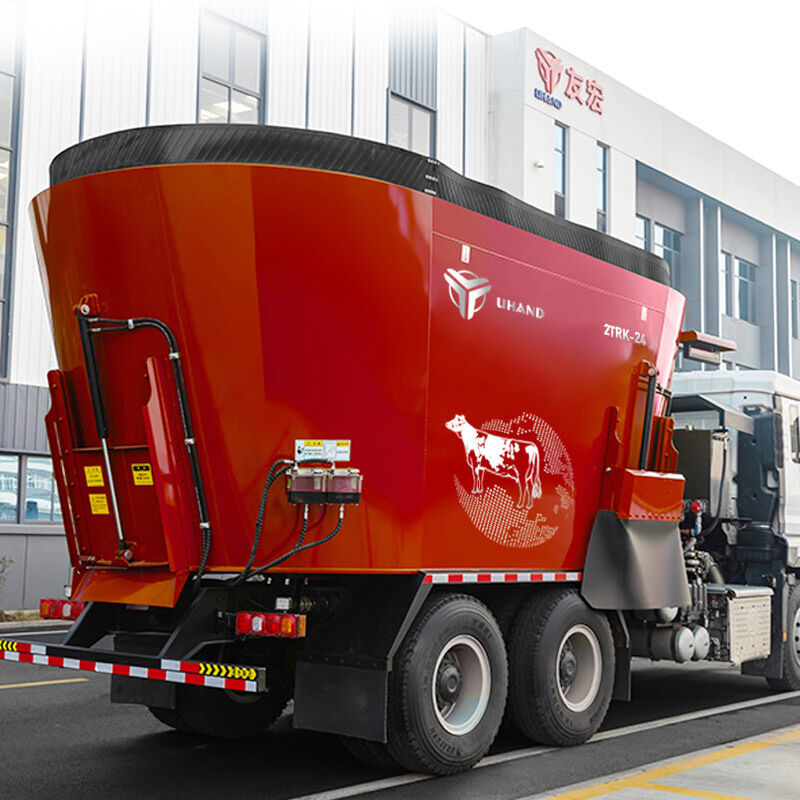

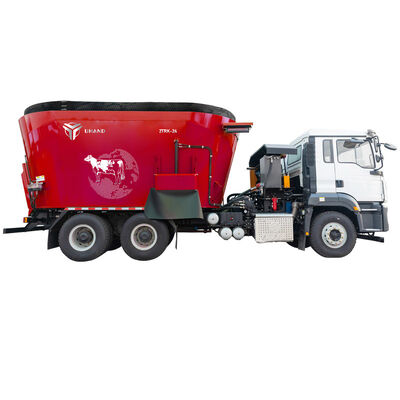

21 m³ Dual-Auger Vertical Truck-Mounted TMR Feed Mixer

Model: NM400 Steel | Designed for Medium to Large Livestock Ranches and Dairy Farms

Product Overview

The UHAND 2TRK-21 is a high-performance, truck-mounted TMR mixer engineered to bridge the needs of medium and large-scale operations. With a substantial 21 m³ effective mixing capacity and a powerful dual-auger system, it delivers exceptional batch output and blend uniformity. Its robust construction and optimized design ensure reliable, day-in, day-out performance for demanding feeding schedules, providing the perfect balance of mobility and high-volume processing.

General Information

Place of Origin: China, Shandong, Qingdao
Brand: UHAND
Model: 2TRK-21
Min. Order: 1 Unit
Delivery Time: 30-60 days
Payment Terms: T/T

Features & Benefits

Substantial Capacity: 21 m³ volume efficiently meets increased feed demands of expanding operations, reducing daily mixing and hauling cycles
Powerful Dual-Auger Mixing: Two heavy-duty augers shorten mixing times and achieve superior homogeneity for nutritionally consistent rations
Enhanced Blade Configuration: Sixteen tungsten carbide-coated blades provide aggressive cutting and mixing action for dense grains, long-stem hay, and wet silage
Robust Chassis and Driveline: Durable frame and reliable PTO connection for consistent power delivery under heavy loads
Stable Transport Platform: Well-balanced design with 6 large tires (10.00R20) offers stability and traction during transport and maneuvering

Application Scenarios

Ideal for medium to large dairy and beef operations requiring mobile, high-capacity mixing for multiple feeding locations
Excellent for farms with centralized mixing stations needing to distribute large TMR batches across widespread facilities
Reliable choice for custom feeding operations or contractors serving multiple farms where efficiency and mix quality are essential

Technical Specifications

Parameter	Specification
Overall Dimensions (L * W * H)	9100 * 2750 * 3150 mm
Machine Weight	12000 kg
Effective Mixing Capacity	21 m³
Number of Augers	2
Number of Mixing Wheels	2
Number of Blades	16
Blade Material	65Mn, Tungsten Carbide Coated
Chassis Ground Clearance (Full Load)	245 mm
Minimum Turning Radius	12500 mm
Number of Tires	6
Tire Specification	10.00R20

Frequently Asked Questions

What is the recommended tractor horsepower for operating the 2TRK-21?

To ensure optimal performance, especially with full loads of dense feed, a tractor with 220-260 HP is recommended to provide adequate PTO power for the dual-auger system.

How does the 2TRK-21 improve operational efficiency over smaller models?

Its 21 m³ capacity allows for preparing significantly larger batches per trip. This translates to fewer total trips between the mixing area and feeding sites, saving substantial time, fuel, and labor over the course of a day.

Is this mixer suitable for use on public roads to travel between farm sites?

Yes, its design and lighting systems typically comply with regulations for slow-moving agricultural vehicles. However, operators must always ensure compliance with local road safety laws regarding width, lighting, and signage.

What maintenance is crucial for the mixing chamber and blades?

Regular inspection of the tungsten carbide-coated blades for wear is important. The interior should be cleaned periodically to prevent material buildup. Following the scheduled lubrication for the auger gearboxes and bearings as per the manual is essential for long-term reliability.
