30m³ Twin Auger Truck Mounted Feed Wagon For Large Livestock Operations

Name: 30m³ Twin Auger Truck Mounted Feed Wagon For Large Livestock Operations
Brand: Qingdao Youhong Livestock Machinery Co., Ltd.
SKU: 2TRK-30
Availability: InStock

Brand Name:	UHAND
Model Number:	2TRK-30
MOQ:	1
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China, Shandong, Qingdao

Machine Weight:

19500 Kg

Effective Mixing Capacity:

30 M³

Number Of Blades:

Blade Material:

65Mn, Tungsten Carbide Coated

Chassis Ground Clearance (Full Load):

350 Mm

Minimum Turning Radius:

14000 Mm

Highlight:

Twin Auger Truck Mounted Feed Wagon

30m³ Truck Mounted Feed Wagon

30m³ truck mounted mixer feeder

Product Description

Product Overview

The UHAND 2TRK-30 is engineered for operations where scale and mobility converge. As a high-capacity mobile mixing solution, its 30 m³ volume addresses the substantial feed requirements of large and expanding herds. The proven dual-auger system ensures rapid, homogeneous mixing, while its robust multi-axle chassis provides the stability needed for safe transport of heavy loads. This mixer is built to be a reliable, high-output asset for the most demanding feeding logistics.

Key Features & Benefits

High-Volume Mobility: 30 m³ capacity maximizes feed delivery per trip, optimizing time and fuel efficiency for extensive feeding routes.

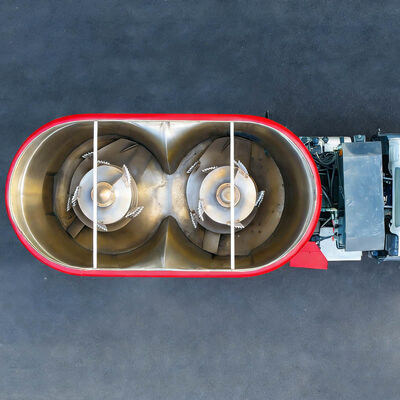

Dependable Dual-Auger Performance: Two heavy-duty augers with 20 tungsten carbide-coated blades ensure fast, thorough mixing for consistent ration quality.

Enhanced Transport Stability: 12-tire configuration provides superior weight distribution and reduced ground pressure for safer operation on soft terrain.

Industrial-Grade Durability: Constructed with wear-resistant NM400 steel in high-stress areas to withstand daily rigors of loading and mixing.

Optimized for Large-Scale Operations: Efficiently bridges gap between centralized feed storage and distant feeding points across vast farms.

Technical Specifications

Overall Dimensions (L * W * H)	9700 * 2950 * 3400 mm
Machine Weight	19500 kg
Effective Mixing Capacity	30 m³
Number of Augers	2
Number of Mixing Wheels	2
Number of Blades	20
Blade Material	65Mn, Tungsten Carbide Coated
Chassis Ground Clearance (Full Load)	350 mm
Minimum Turning Radius	14000 mm
Number of Tires	12
Tire Specification	12.00R20

Application Scenarios

Ideal for large to high-capacity dairy and beef operations requiring transport of vast TMR quantities across sizable facilities

Perfect for farms with central mixing points supplying multiple distant barns or feeding lots

Excellent for custom feed operators needing reliable, high-volume mobile mixers to serve multiple client farms

Frequently Asked Questions

What is the minimum recommended tractor horsepower for the 2TRK-30?

Given its significant capacity and weight, we recommend a minimum of 350-400 HP to provide adequate PTO power for effective mixing and handle substantial draft loads.

How does the 12-tire setup improve performance compared to models with fewer tires?

The 12-tire configuration dramatically increases tire contact area, lowering ground pressure to prevent rutting on soft ground while enhancing traction and stability.

Is this mixer suitable for long-distance road travel between farm sites?

While built for agricultural use, its design considers transport. Operators must ensure compliance with local regulations regarding width, weight, and signage. The multi-axle design improves highway stability.

What are the key daily checks before operating the 2TRK-30?

Essential pre-operation checks include: tire pressure and condition, lighting functions, PTO shaft integrity, hydraulic connections, and ensuring the mixing chamber is clear.
