40m³ Triple Auger Truck Mounted Mixer Feeder For High Capacity Livestock Operations

Name: 40m³ Triple Auger Truck Mounted Mixer Feeder For High Capacity Livestock Operations
Brand: Qingdao Youhong Livestock Machinery Co., Ltd.
SKU: 3TRK-40
Availability: InStock

Brand Name:	UHAND
Model Number:	3TRK-40
MOQ:	1
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China, Shandong, Qingdao

Machine Weight:

21000 Kg

Effective Mixing Capacity:

40 M³

Number Of Blades:

Blade Material:

65Mn, Tungsten Carbide Coated

Chassis Ground Clearance (Full Load):

350 Mm

Minimum Turning Radius:

16000 Mm

Highlight:

40m³ Truck Mounted Mixer Feeder

Triple Auger Truck Mounted Mixer Feeder

40m³ truck mounted feed mixer

Product Description

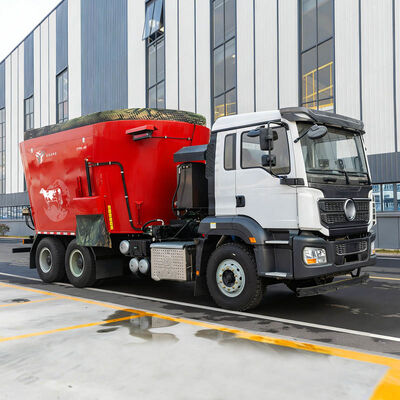

40 m³ Triple-Auger Vertical Truck-Mounted TMR Feed Mixer

Model: 3TRK-40 | Brand: UHAND | Designed for High-Capacity & Mega-Scale Livestock Ranches and Dairy Farms

Product Overview

The UHAND 3TRK-40 represents the pinnacle of mobile TMR mixing technology. Designed for mega-scale operations, it combines an industry-leading 40 m³ capacity with the superior blending speed and uniformity of a triple-auger system. This machine functions as a mobile feed factory on wheels, engineered for ultimate durability and performance to meet the relentless demands of the world's largest and most efficient livestock enterprises.

General Information

Place of Origin: China, Shandong, Qingdao
Brand: UHAND
Model: 3TRK-40
Minimum Order: 1 Unit
Delivery Time: 30-60 days
Payment Terms: T/T

Features & Benefits

Ultimate Mobile Capacity: 40 m³ volume handled by three synchronized augers offers the fastest mixing cycles and exceptional blend homogeneity for large batches
Unmatched Mixing Power: Thirty tungsten carbide-coated blades ensure rapid incorporation and particle size reduction of all ingredients, including challenging fibrous materials
Maximum Stability & Off-Road Capability: Heavy-duty chassis with 12 large tires (12.00R20) and 350 mm ground clearance ensures confident operation in all conditions
Industrial-Strength Construction: Monolithic NM400 augers and reinforced structures guarantee longevity and minimize downtime
Mobile Feeding Logistics Centerpiece: Enables efficient large-scale feeding strategy by delivering unprecedented batch sizes directly to animal locations

Application Scenarios

Definitive solution for mega-dairies and giant beef feedlots where minimizing daily feed delivery cycles is paramount
Ideal for large contract feeding businesses managing multiple contiguous sites from a central mobile unit
Perfect for vast ranches requiring central mixing and long-distance transport to various feeding points

Technical Specifications

Overall Dimensions (L * W * H)	11500 * 2950 * 3500 mm
Machine Weight	21000 kg
Effective Mixing Capacity	40 m³
Number of Augers	3
Number of Mixing Wheels	3
Number of Blades	30
Blade Material	65Mn, Tungsten Carbide Coated
Chassis Ground Clearance (Full Load)	350 mm
Minimum Turning Radius	16000 mm
Number of Tires	12
Tire Specification	12.00R20

Frequently Asked Questions

What level of tractor power is required to operate the 3TRK-40?

This is the most demanding model in our mobile lineup. A high-performance tractor of 400+ HP is strongly recommended, and often necessary, to provide the immense PTO power required to drive the triple-auger system efficiently and to manage the extreme gross vehicle weight during transport.

What is the main advantage of the triple-auger system in such a large mobile mixer?

For a 40 m³ batch, achieving a uniform mix quickly is critical. The triple-auger system drastically reduces total mixing time compared to dual-auger designs and ensures a higher degree of homogeneity throughout the massive batch, which is essential for consistent animal nutrition.

How should an operation prepare for integrating a mixer of this size?

Preparation is key: ensure tractors with sufficient horsepower are available, verify that all intended travel routes (bridges, gates, roads) can accommodate its size and weight, plan for adequate maneuvering space at loading and unloading sites, and ensure your feeding pad can efficiently handle 40 m³ batches.

What kind of maintenance schedule is associated with this industrial-grade machine?

It requires a disciplined, proactive maintenance schedule. This includes frequent inspections of the triple gearboxes and bearings, monitoring all 30 blades for wear, checking the multi-point lubrication system, and adhering strictly to the service intervals for the heavy-duty axle components. Detailed manuals and support from our technical team are provided.
