| Brand Name: | UHAND |
| Model Number: | FC-16 |
| MOQ: | 1 |
| Payment Terms: | T/T |
Product Overview
The UHAND FC-16 is the high-capacity workhorse utilizing our pioneering integrated collection and spreading technology. Designed as the primary unit for medium to large-scale farms, it combines a substantial 16m³ capacity with a robust build for high-intensity operations. This innovative machine maximizes efficiency by allowing large farms to collect significant volumes of feed refusals and immediately re-spread them in a single, seamless operation, combining heavy-duty performance with precision data management.
Key Features & Benefits
High-Capacity Integrated Workflow: The 16m³ hopper and 6000kg load capacity allow for managing large volumes of refusals in one go, collecting and re-spreading without intermediate stops.
Robust Heavy-Duty Construction: Features a longer wheelbase and heavier chassis designed for durability and stability under heavy loads in demanding large-farm environments.
Faster Cycle Times: Equipped with a faster spreading rate (0.12 m³/min) and larger outlets compared to smaller models, speeding up the entire recycling process.
Precision Waste Management: High-precision Avery Weigh-Tronix weighing (±2 kg) provides the accurate data essential for large operations to optimize costly rations.

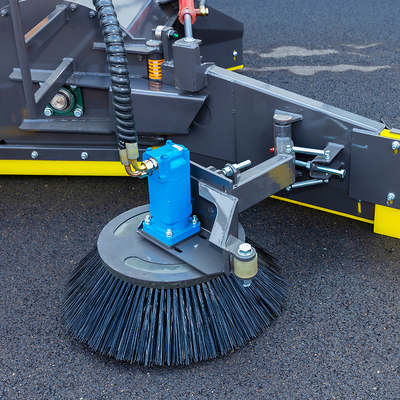

Superior Cleaning Performance: The 1.9m intake and brush system guarantees over 95% recovery, maintaining high hygiene standards across large feeding areas.
Application Scenarios
Medium to Large-Scale Farms: The ideal primary machine for managing large volumes of refusals efficiently.
High-Intensity Integrated Operations: Designed for daily, continuous use where collecting and re-feeding needs to be done quickly.
Farms Implementing Precision Feeding: The accurate data collection is crucial for integrating with advanced feeding management software.
Technical Specifications
| Parameter | Specification |
| Model | FC-16 |
| Effective Hopper Capacity | 16 m³ |
| Actual Load Capacity | 6000 kg |
| Operating Weight | 8000 kg |
| Dimensions (L×W×H) - Working | 9100 × 2900 × 3200 mm |
| Collection Width | 1900 mm |
| Wheelbase | 3600 mm |
| Engine Power (National III / IV) | 88 kW / 91 kW |
| Weighing Accuracy | Class C1 ±2kg |
| Spreading Rate | 0.12 m³/min |
| Collection Method | Rotary drum auger + belt |
| Spreading Method | Hydraulic belt (bilateral) |
Note: Product images are for illustrative purposes only. Actual product may vary. Specifications are subject to change without notice due to continuous improvement. Please consult our sales team for the latest information.
Frequently Asked Questions
Q1: Why is this integrated machine better for large farms than separate units?
A1: Efficiency and labor savings. Instead of using a loader to collect refusals, dumping them, and then using another wagon to re-feed them, the UHAND FC-16 does it all. One driver, one machine, one continuous process.
Q2: Can it handle heavy, dense feed refusals?
A2: Yes, the FC-16 is built on a heavy-duty chassis with a powerful engine and robust conveyor system, specifically designed to handle the weight and density of refusals up to a 6000kg load.
Q3: How does this machine contribute to farm profitability?
A3: It cuts costs directly by accurately tracking and reducing feed waste, and indirectly by significantly reducing the machinery and labor hours required for managing feed refusals.
