UHAND FC-12 12m³ High Capacity Feed Collector Integrated Collect Precise Weighing

UHAND FC-12 12m³ High Capacity Feed Collector Integrated Collect Precise Weighing

Brand Name: UHAND
Model Number: FC-12
MOQ: 1
Payment Terms: T/T
Detail Information
Place of Origin:
China
Capacity:
12 M³
Operating Weight:
7500 Kg
Collection Method:
Rotary Drum Auger + Belt
Spreading Method:
Hydraulic Belt (bilateral)
Engine Power:
88 KW / 91 KW
Weighing Accuracy:
Class C1 ±2kg
Highlight:

High Capacity Feed Collector

,

12m³ Feed Collector

,

Precise Weighing leftover collector

Product Description
UHAND FC-12 12m³ Flexible Self-Propelled Feed Refusal Collector
Product Overview

Building on UHAND's pioneering integrated technology, the FC-12 offers an increased 12m³ capacity for farms requiring more volume without sacrificing agility. This innovative machine streamlines feed management by combining the functions of collection, weighing, and re-spreading into one efficient workflow. The FC-12 digitizes feed refusal management with high-precision weighing, ensuring every kilogram is accounted for, aiding in precise cost control and maintaining excellent barn hygiene.

Key Features & Benefits
  • Integrated Collection & Re-spreading: Leverages UHAND's unique dual-function design to collect feed refusals and re-distribute them immediately, saving time and labor by eliminating double handling.

  • Increased Flexible Capacity: Offers a 12m³ hopper and higher load capacity (4700 kg) compared to the FC-10, suitable for growing farms with higher daily refusal volumes.

  • Data-Driven Cost Savings: Standard high-precision Avery Weigh-Tronix weighing (±2 kg) turns vague waste estimates into accurate financial data for better decision-making.

  • Thorough & Clean Collection: The 1.9m wide intake and brush system ensures >95% recovery rate, keeping feeding tables clean and reducing health risks from spoiled feed.

  • Agile & Efficient: Maintains the excellent maneuverability of the flexible series with a short wheelbase, ideal for navigating various barn layouts.

Application Scenarios
  • Growing Medium-Sized Farms: Ideal for farms whose herd size and refusal volume have outgrown smaller solutions.

  • Operations Implementing Feed Recycling: Perfect for farms that actively feed sorted refusals to other animal groups.

  • Facilities with Standard to Tight Spaces: Its design ensures effective operation even where turning space is limited.

Technical Specifications
Parameter Specification
Model FC-12
Effective Hopper Capacity 12 m³
Actual Load Capacity 4700 kg
Operating Weight 7500 kg
Dimensions (L×W×H) - Working 8600 × 2800 × 3100 mm
Collection Width 1900 mm
Wheelbase 3300 mm
Engine Power (National III / IV) 88 kW / 91 kW
Weighing Accuracy Class C1 ±2kg
Collection Method Rotary drum auger + belt
Spreading Method Hydraulic belt (bilateral)

Note: Product images are for illustrative purposes only. Actual product may vary. Specifications are subject to change without notice due to continuous improvement. Please consult our sales team for the latest information.

Frequently Asked Questions

Q1: How does the integrated re-spreading work?

A1: Once refusals are collected into the hopper, the operator can engage the built-in bilateral hydraulic belt system. This allows for convenient, controlled unloading and spreading of the recovered feed to either side of the machine.

Q2: What is the main difference between the FC-12 and FC-10?

A2: The FC-12 offers a larger 12m³ capacity and a higher actual load capacity of 4700kg (vs 3800kg on the FC-10). It also features a slightly more powerful engine option under National III standards.

Q3: Is it difficult to operate the dual functions?

A3: Not at all. The self-propelled design with a comfortable cab and intuitive controls makes managing both collection and spreading functions easy for a single operator.

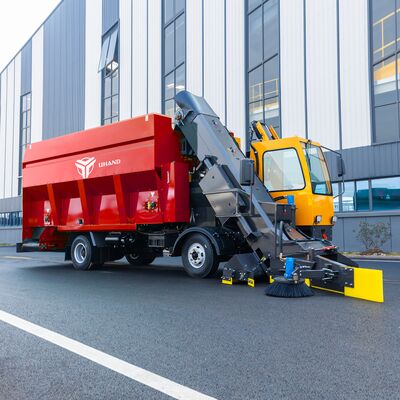

UHAND FC-12 12m³ High Capacity Feed Collector Integrated Collect Precise Weighing 0
