Double Augers Vertical TMR Mixer Machine With 30m³ Capacity High Performance

Name: Double Augers Vertical TMR Mixer Machine With 30m³ Capacity High Performance
Brand: Qingdao Youhong Livestock Machinery Co., Ltd.
SKU: 2Max-30S
Availability: InStock

Brand Name:	UHAND
Model Number:	2Max-30S
MOQ:	1
Payment Terms:	T/T
Supply Ability:	Monthly capacity: 200 units

Detail Information

Product Description

Detail Information

Place of Origin:

Qingdao, China

Machine Weight:

11500 Kg

Volume:

30 M³

PTO:

≥210 Hp

Number Of Augers:

Auger Thickness:

20mm

Number Of Blades:

Highlight:

30m³ Vertical TMR Mixer

Double Augers Vertical TMR Mixer

TMR Mixer Machine 30m³

Product Description

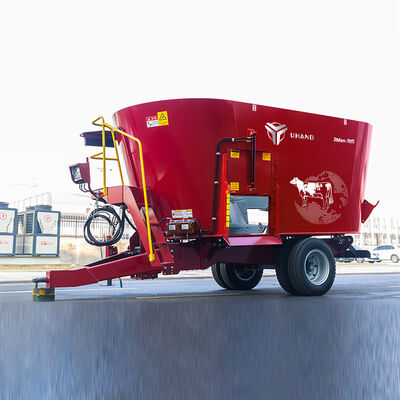

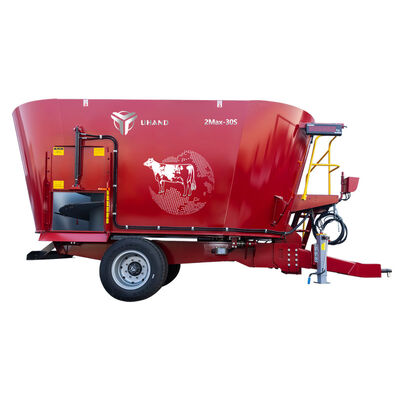

UHAND 2Max-30S Dual-Auger Vertical Trailed TMR Feed Mixer with Integrated Spreader

30 m³ capacity dual-auger vertical trailed TMR feed mixer with integrated spreader, featuring Max Series heavy-duty NM400 steel construction for high-output livestock ranches and dairy farms.

General Information

Place of Origin: China, Shandong, Qingdao
Brand: UHAND
Model: 2Max-30S
Min. Order: 1 Unit
Delivery Time: 30-60 days
Payment Terms: T/T

Product Overview

The UHAND 2Max-30S defines heavy-duty, integrated feeding for the most demanding high-output operations. This system delivers an immense 30 m³ mixing capacity combined with a robust spreader, engineered to tackle the ultimate daily feed volumes. It represents a peak in the dual-auger Max Series lineup, built not just for scale but for relentless, reliable performance where operational uptime is directly linked to productivity.

Features & Benefits

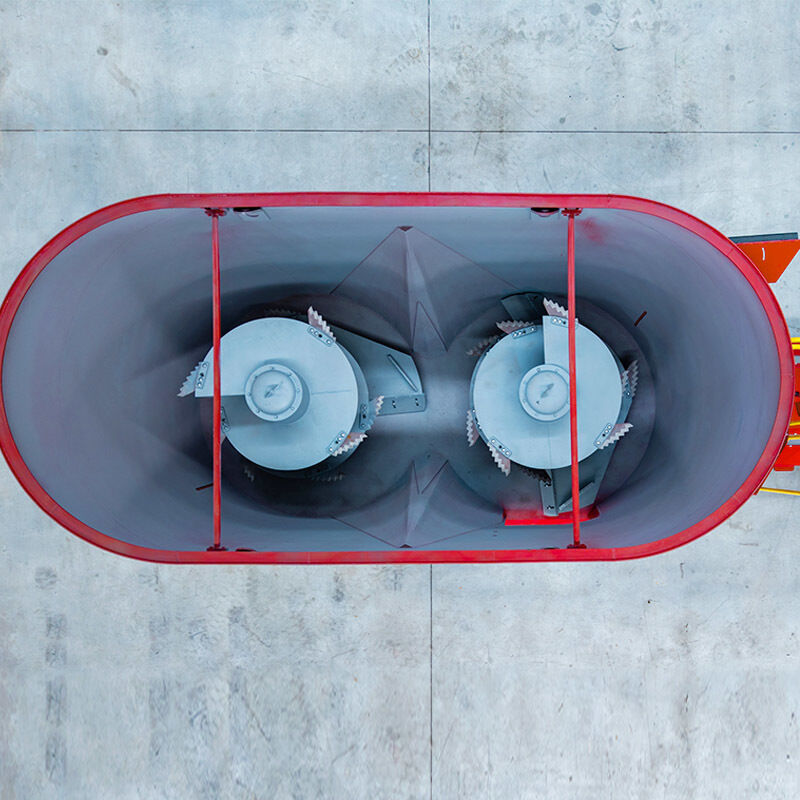

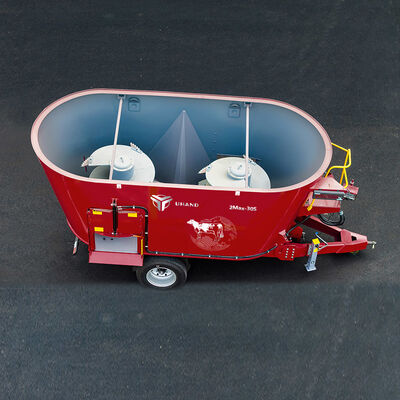

Ultimate Dual-Auger Capacity: Engineered to deliver 30 m³ batches, pushing the boundaries of mixing volume to minimize daily cycles and maximize feeding throughput for the largest herds.

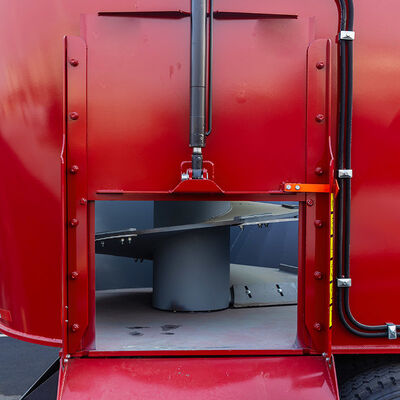

Integrated High-Efficiency Feeding: Combines mixing and spreading into one seamless operation, dramatically streamlining logistics and saving critical time, labor, and fuel in high-output environments.
Heavy-Duty Power & Drive: Requires a powerful ≥210 HP PTO tractor, matched with a driveline and components built to withstand the continuous high-torque demands of this capacity.
Superior Mobility & Traction: Equipped with high-flotation 315/80R22.5 tires, providing the necessary ground clearance, stability, and reduced soil compaction for heavy loads in diverse field conditions.

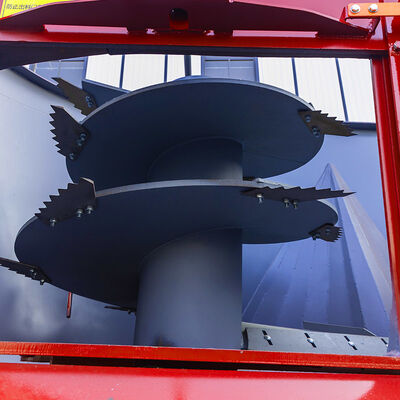

Max Series Construction Integrity: Features the full suite of heavy-duty construction, including 20mm thick integrally cast NM400 augers, 10/20mm body plating, and proprietary surface protection for maximum longevity.

Application Scenarios

The premier solution for mega-dairies and large-scale feedlots where daily output targets are extremely high.
Ideal for operations that have standardized on high-capacity equipment and require the next level of integrated efficiency.
Built for use with the most powerful farm tractors on expansive operations where equipment durability is non-negotiable.

Technical Specifications

Parameter	2Max-30S (with Spreader)
Overall Dimensions (L x W x H)	8250 x 3050 x 3300 mm
Machine Weight	11500 kg
Volume	30 m³
Required PTO Power	≥210 hp
Number of Augers	2
Auger Thickness	20 mm
Auger Speed	540/30 r/min

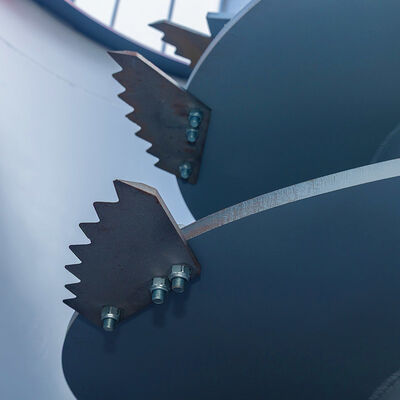

Number of Blades	20
Blade Material	65Mn, Tungsten Carbide Coated
Cylinder Bottom Plate Thickness	20 mm
Cylinder Side Plate Thickness	10 mm
Tire Specification & Quantity	315/80R22.5 x 4

Frequently Asked Questions

What operational benefits does the 30 m³ capacity provide?

The 30 m³ capacity is transformative for scale. It significantly reduces the total number of batches needed per day, allowing you to feed more animals in less time. This directly translates to lower labor costs, reduced fuel consumption, and improved overall operational efficiency.

Is the integrated spreader designed for both bunk and pasture feeding?

Yes. The spreader can be configured for versatile discharge, making it effective for precise bunk line feeding as well as broad, uniform distribution in pasture settings, offering flexibility to match your operation's specific feeding strategy.

How does the machine maintain stability with such a high load?

Stability is achieved through a combination of a massively reinforced chassis, optimal weight distribution in the design, and the large, high-flotation tire setup. This engineering ensures safe and stable transport and operation, even when the mixer and spreader are fully loaded.
