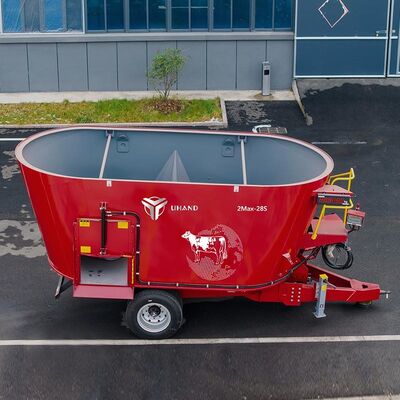

28m³ Twin Auger TMR Vertical Mixer For Large Scale Livestock Ranches

Name: 28m³ Twin Auger TMR Vertical Mixer For Large Scale Livestock Ranches
Brand: Qingdao Youhong Livestock Machinery Co., Ltd.
SKU: 2Max-28S
Availability: InStock

Brand Name:	UHAND
Model Number:	2Max-28S
MOQ:	1
Payment Terms:	T/T
Supply Ability:	Monthly capacity: 200 units

Detail Information

Product Description

Detail Information

Place of Origin:

Qingdao, China

Machine Weight:

10500 Kg

Volume:

28 M³

PTO:

≥200 Hp

Number Of Augers:

Auger Thickness:

20mm

Number Of Blades:

Highlight:

Twin Auger TMR Vertical Mixer

28m³ TMR Vertical Mixer

Twin Auger tmr mixer machine

Product Description

Product Overview

The UHAND 2Max-28S represents a fusion of ultimate capacity and integrated feeding intelligence for the most extensive ranches. This system pairs the high-volume 28 m³ mixing prowess of the 2Max-28 with a rugged, integrated rear spreader. Designed to conquer large-scale feeding challenges, it delivers unmatched logistical efficiency by merging mixing and distribution into one formidable machine, all while offering the superior ground flotation needed for expansive operations.

Key Specifications

Place of Origin: China, Shandong, Qingdao

Brand: UHAND

Model: 2Max-28S

Minimum Order: 1 Unit

Delivery Time: 30-60 days

Payment Terms: T/T

Features & Benefits

High-Capacity Integrated Workflow: Combines 28 m³ mixing with direct spreading, creating the most efficient large-scale feeding process possible, eliminating a separate machine pass and saving substantial time and resources.
Superior Traction and Flotation: Utilizes high-flotation 315/80R22.5 tires, ensuring excellent mobility and stability across extensive feeding grounds.
Heavy-Duty Spreader Construction: Built to Max Series standards, designed to handle large mixer output with durability and reliability.
Powerful & Precise Performance: Requires ≥200 HP PTO with a powertrain calibrated for consistent power to both mixing and spreading functions.
Uncompromised Mixing Core: Inherits exceptional dual-auger mixing system, ensuring perfect blending before even distribution.

Technical Specifications

Parameter	2Max-28S (with Spreader)
Overall Dimensions (L x W x H)	8200 x 3020 x 3350 mm
Machine Weight	10500 kg
Volume	28 m³
Required PTO Power	≥200 hp
Number of Augers	2
Auger Thickness	20 mm
Auger Speed	540/30 r/min
Number of Blades	20
Blade Material	65Mn, Tungsten Carbide Coated
Cylinder Bottom Plate Thickness	20 mm
Cylinder Side Plate Thickness	10 mm
Tire Specification & Quantity	315/80R22.5 x 4

Application Scenarios

The ultimate solution for mega-scale operations where feeding efficiency over large areas is critical to profitability.
Ideal for ranches with very long feed bunks or those practicing pasture supplementation on a large scale.
Designed for progressive operations that want to leverage the highest levels of automation and efficiency in their feeding protocol.

Frequently Asked Questions

How does the integrated system handle different feed types (e.g., dry grain vs. wet silage)?

The system is highly capable. The powerful dual-auger mixer ensures a uniform blend of all ingredients. The spreader mechanism, particularly in a flail-type configuration, is effective at evenly distributing both dry and wet mixes across the target area.

Is the machine significantly longer and harder to maneuver with the spreader?

While the overall length increases, the design prioritizes balance and stability. The high-flotation tires and robust chassis ensure it remains manageable for the large-scale operations it is designed to serve. Operators accustomed to large equipment will appreciate its engineered handling.

What is the main value proposition of the 2Max-28S compared to running separate mixer and feeder?

The value lies in transformative operational efficiency. By using one machine instead of two, you save on capital cost, labor (one operator), fuel, maintenance, and field time. For an operation of this scale, these savings compound rapidly, offering a strong return on investment.
