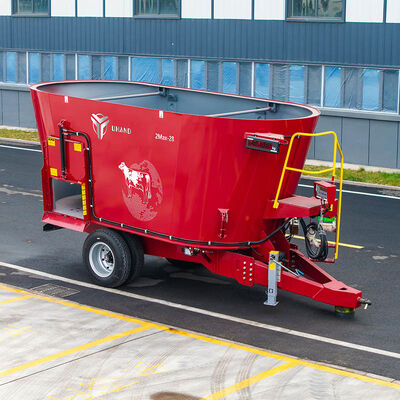

10000kg Weight TMR Mixer 20 Blades Auger Feed Wagon With High Flotation Tires

Name: 10000kg Weight TMR Mixer 20 Blades Auger Feed Wagon With High Flotation Tires
Brand: Qingdao Youhong Livestock Machinery Co., Ltd.
SKU: 2Max-28
Availability: InStock

Brand Name:	UHAND
Model Number:	2Max-28
MOQ:	1
Payment Terms:	T/T
Supply Ability:	Monthly capacity: 200 units

Detail Information

Product Description

Detail Information

Place of Origin:

Qingdao, China

Machine Weight:

10000 Kg

Volume:

28 M³

PTO:

≥200 Hp

Number Of Augers:

Auger Thickness:

20 Mm

Number Of Blades:

Highlight:

10000kg Weight TMR Mixer

20 Blades Auger Feed Wagon

10000kg Auger Feed Wagon

Product Description

Product Overview

The UHAND 2Max-28 elevates large-scale feeding to new heights of capability and reliability. Engineered with a 28 m³ capacity, this dual-auger Max Series mixer is designed for operations where ground conditions and immense daily feed volumes are critical factors. It combines our most durable mixing technology with high-flotation tires, ensuring consistent performance and mobility in challenging environments, making it the backbone of the world's most extensive feeding operations.

Key Specifications

Parameter	2Max-28
Overall Dimensions (L x W x H)	7200 x 3020 x 3350 mm
Machine Weight	10000 kg
Volume	28 m³
Required PTO Power	≥200 hp
Number of Augers	2
Auger Thickness	20 mm
Auger Speed	540/30 r/min
Number of Blades	20
Blade Material	65Mn, Tungsten Carbide Coated
Cylinder Bottom Plate Thickness	20 mm
Cylinder Side Plate Thickness	10 mm
Tire Specification & Quantity	315/80R22.5 x 4

Features & Benefits

Enhanced High-Capacity Design: Delivers a substantial 28 m³ batch size, engineered to maximize efficiency and minimize cycles for operations managing vast herds.
High-Flotation Tire Configuration: Equipped with large 315/80R22.5 tires that provide superior ground clearance, reduced soil compaction, and enhanced traction on soft or uneven terrain.
Robust Dual-Auger Mixing System: Features two integrally cast 20mm NM400 steel augers with 20 tungsten carbide-coated blades for fast, thorough mixing.
Built for High-Horsepower Performance: Requires a powerful tractor (≥200 HP PTO) with heavy-duty driveline for consistent mixing under full load.
Max Series Durability Standard: Constructed with 10mm NM400 sidewalls, 20mm bottom plate, and reinforced chassis for long-term structural integrity.

Application Scenarios

Ideal for very large-scale dairy and beef operations located on varied terrain where ground flotation is as important as mixing capacity.
Perfect for operations that have outgrown smaller models and require a significant step up in daily output and machine capability.
Designed for use with high-horsepower tractors in settings where equipment must perform reliably day in and day out.

Frequently Asked Questions

How does the integrated system handle different feed types (e.g., dry grain vs. wet silage)?

The system is highly capable. The powerful dual-auger mixer ensures a uniform blend of all ingredients. The spreader mechanism, particularly in a flail-type configuration, is effective at evenly distributing both dry and wet mixes across the target area.

Is the machine significantly longer and harder to maneuver with the spreader?

While the overall length increases, the design prioritizes balance and stability. The high-flotation tires and robust chassis ensure it remains manageable for the large-scale operations it is designed to serve. Operators accustomed to large equipment will appreciate its engineered handling.

What is the main value proposition of the 2Max-28S compared to running separate mixer and feeder?

The value lies in transformative operational efficiency. By using one machine instead of two, you save on capital cost, labor (one operator), fuel, maintenance, and field time. For an operation of this scale, these savings compound rapidly, offering a strong return on investment.

Ordering Information

Place of Origin: China, Shandong, Qingdao
Brand: UHAND
Model: 2Max-28
Min. Order: 1 Unit
Delivery Time: 30-60 days
Payment Terms: T/T
