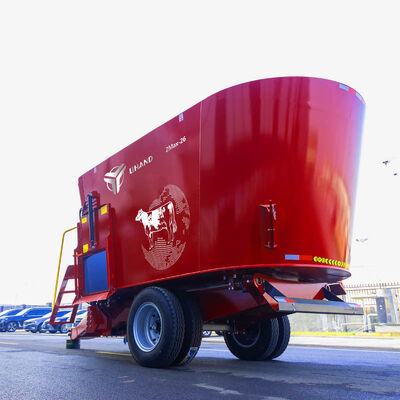

26m³ Capacity Vertical TMR Mixer Machine For Large Scale Livestock Operations

Name: 26m³ Capacity Vertical TMR Mixer Machine For Large Scale Livestock Operations
Brand: Qingdao Youhong Livestock Machinery Co., Ltd.
SKU: 2Max-26
Availability: InStock

Brand Name:	UHAND
Model Number:	2Max-26
MOQ:	1
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China, Shandong, Qingdao

Machine Weight:

9500 Kg

Volume:

26 M³

PTO:

≥180 Hp

Number Of Augers:

Auger Thickness:

20 Mm

Number Of Blades:

Highlight:

26m³ Capacity Vertical TMR Mixer

26m³ TMR Mixer Machine

Livestock Operations TMR Mixer Machine

Product Description

26 m³ Dual-Auger Vertical Trailed TMR Feed Mixer

Max Series NM400 Steel for Large-Scale Livestock Ranches and Dairy Farms

Product Overview

The UHAND 2Max-26 heralds the formidable Max Series, engineered for the pinnacle of feeding scale and endurance. With an impressive 26 m³ capacity, this dual-auger trailed mixer is purpose-built for mega-dairies and large-scale feedlots where daily volume and unwavering reliability are non-negotiable. It embodies our most extreme heavy-duty construction, translating legendary durability into colossal output for the world's most demanding livestock operations.

General Information

Place of Origin: China, Shandong, Qingdao
Brand: UHAND
Model: 2Max-26
Min. Order: 1 Unit
Delivery Time: 30-60 days
Payment Terms: T/T

Features & Benefits

Max Series Heavy-Duty Capacity: Delivers a massive 26 m³ batch size, engineered to drastically reduce mixing cycles and maximize feeding throughput for the largest herds.
Dual-Auger Power & Superior Mixing: Two proprietary, integrally cast 20mm NM400 steel augers with 20 tungsten carbide-coated blades ensure rapid, thorough, and perfectly uniform blending.
Engineered for Extreme Duty: Requires high-power tractor (≥180 HP PTO) with driveline and gearbox built for continuous, high-torque operation.
Uncompromising Structural Integrity: Features 10mm NM400 sidewalls, 20mm bottom plate, and super-reinforced chassis for ultimate longevity.
Complete Longevity Assurance: Protected by shot blasting and resilient 4-layer industrial paint system for any environment.

Application Scenarios

Optimal foundation for mega-scale dairy and beef operations requiring highest standard mixing capacity
Designed for operations feeding thousands of animals efficiently as primary operational driver
Ideal for operations utilizing high-horsepower tractors seeking exceptional durability

Technical Specifications

Overall Dimensions (L x W x H)	6700 x 2800 x 3450 mm
Machine Weight	9500 kg
Volume	26 m³
Required PTO Power	≥180 hp
Number of Augers	2
Auger Thickness	20 mm
Auger Speed	540/29 r/min
Number of Blades	20
Blade Material	65Mn, Tungsten Carbide Coated
Cylinder Bottom Plate Thickness	20 mm
Cylinder Side Plate Thickness	10 mm
Tire Specification & Quantity	8.25R20 x 4

Frequently Asked Questions

What defines the "Max Series" compared to the Pro series?

The Max Series represents our top tier in capacity and heavy-duty design, built for the absolute largest scale operations. It features enhanced structural components and is engineered for even greater volumes and more intensive use cycles than the Pro series.

Why does the 2Max-26 need ≥180 HP?

The ≥180 HP requirement is essential to provide the necessary torque to drive the twin heavy-duty augers through a fully loaded 26 m³ drum efficiently. This ensures optimal mixing performance and protects both the tractor and mixer's driveline components.

Is the mixing time significantly longer for a 26 m³ batch?

No. The powerful dual-auger system is specifically engineered for this capacity. It maintains highly efficient mixing cycles, meaning you gain massive batch size without a proportional increase in mixing time, maximizing your overall productivity.
