Efficent 21m³ Volume TMR Mixer Wagon For High Output Livestock Ranches

Name: Efficent 21m³ Volume TMR Mixer Wagon For High Output Livestock Ranches
Brand: Qingdao Youhong Livestock Machinery Co., Ltd.
SKU: 2Pro-21S
Availability: InStock

Brand Name:	UHAND
Model Number:	2Pro-21S
MOQ:	1
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Qingdao, China

Machine Weight:

8500 Kg

Volume:

21 M³

PTO:

≥150 Hp

Number Of Augers:

Auger Thickness:

20 Mm

Number Of Blades:

Highlight:

21m³ TMR Mixer Wagon

Efficent TMR Mixer Wagon

21m³ tmr feed cart

Product Description

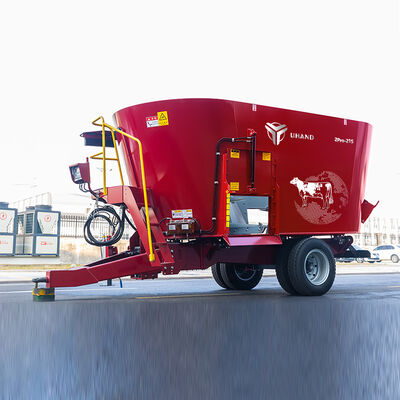

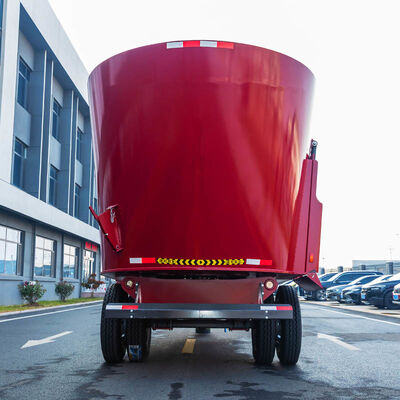

21 m³ Dual-Auger Vertical Trailed TMR Mixer with Integrated Spreader

Pro Series with NM400 Steel, for High-Output Livestock Ranches and Dairy Farms

General Information

Place of Origin: China, Shandong, Qingdao

Brand: UHAND

Model: 2Pro-21S

Min. Order: 1 Unit

Delivery Time: 30-60 days

Payment Terms: T/T

Product Overview

The UHAND 2Pro-21S represents the pinnacle of integrated feeding technology for the most demanding high-output ranches. This system combines the substantial 21 m³ mixing capacity of the 2Pro-21 with a rugged, integrated rear feed spreader. Designed to eliminate a separate feeding pass, it delivers unmatched operational efficiency, transforming mixing and feeding into a single, streamlined process. Built to the highest standards of durability, it is the ultimate tool for operations where scale, speed, and reliability are paramount.

Features & Benefits

Ultimate Feeding Workflow Integration: Merges high-volume TMR mixing and precise feed distribution into one machine, dramatically saving time, labor, and fuel by completing two critical tasks in a single pass.

High-Capacity Mixing & Spreading: The 21 m³ mixer feeds directly into a heavy-duty spreader built on an 8-ton capacity axle and a double-layer chassis, designed for the relentless pace of large-scale operations.

Configurable Discharge for Flexibility: Offers a choice between a high-capacity flail spreader for broad, even coverage or a belt discharge system for controlled windrow placement, adaptable to any feeding strategy or barn layout.

Engineered for Low-Speed Precision: The machine's powertrain is optimized to deliver full power to both mixing and spreading functions even at low working speeds (down to ~2.5 km/h), ensuring accurate and consistent feed placement.

Uncompromised Pro Series Build Quality: Inherits every durability feature of the standard 2Pro-21, ensuring the mixing core and the integrated spreader are built to last under the most intensive use.

Application Scenarios

The definitive solution for mega-dairies, large feedlots, and contract feeding operations where maximizing throughput and minimizing operational overhead are critical.

Ideal for operations with extensive feeding lanes or those practicing precise bunk management, where direct, even feed distribution from the mixer provides a decisive advantage.

The optimal investment for progressive operations seeking to implement the most efficient, technology-driven feeding protocol available.

Technical Specifications

Parameter	2Pro-21S (with Spreader)
Overall Dimensions (L x W x H)	7850 x 2560 x 3100 mm
Machine Weight	8500 kg
Volume	21 m³
Required PTO Power	≥150 hp
Number of Augers	2
Auger Thickness	20 mm
Auger Speed	540/29 r/min
Number of Blades	16
Blade Material	65Mn, Tungsten Carbide Coated
Cylinder Bottom Plate Thickness	20 mm
Cylinder Side Plate Thickness	10 mm
Tire Specification & Quantity	8.25R20 x 4

Frequently Asked Questions

How much time can an integrated system like the 2Pro-21S save?

Savings are substantial. By eliminating the need for a separate tractor and feeder wagon, you save the time for an entire machine to travel to and from the feed bunk, plus loading/unloading time. This can reduce total feeding time by 30-50% or more, depending on your operation's layout.

Is the spreader difficult to maintain or clean?

The spreader is designed for serviceability. Key wear parts like the flail hammers or belt are accessible. Its heavy-duty construction minimizes failures, and the clean, open design of the double-layer chassis allows for easy inspection and cleaning.

Can I use the mixer if the spreader part is not needed?

The system is designed as an integrated unit for mixing and immediate feeding. While the spreader can be engaged or disengaged, the machine is optimized for the combined workflow. For operations that only need a mixer, the standard 2Pro-21 model is the recommended choice.

What is the advantage of your double-layer chassis on the spreader?

The double-layer chassis provides immense structural rigidity, preventing flex and fatigue. This is crucial for supporting the heavy, dynamic loads of a full spreader box and ensures the unit remains square and true for years, preventing alignment issues and premature wear.
