Large Capacity NM400 Steel TMR Mixer Machine For Dairy Farms 8000kg Weight

Name: Large Capacity NM400 Steel TMR Mixer Machine For Dairy Farms 8000kg Weight
Brand: Qingdao Youhong Livestock Machinery Co., Ltd.
SKU: 2Pro-21
Availability: InStock

Brand Name:	UHAND
Model Number:	2Pro-21
MOQ:	1
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Qingdao, China

Machine Weight:

8000 Kg

Volume:

21 M³

PTO:

≥150 Hp

Number Of Augers:

Auger Thickness:

20 Mm

Number Of Blades:

Highlight:

NM400 Steel TMR Mixer Machine

Dairy Farms TMR Mixer Machine

8000kg tmr feed mixer

Product Description

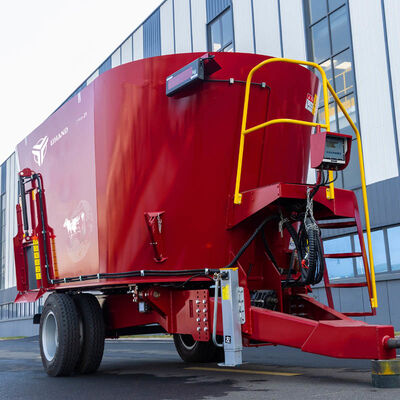

21 m³ Dual-Auger Vertical Trailed TMR Mixer, Pro Series

Engineered for high-output livestock ranches and dairy farms requiring exceptional capacity and superior mixing precision.

Product Overview

The UHAND 2Pro-21 is engineered for high-output operations that demand both exceptional capacity and superior mixing precision. As part of our extended Pro series, this 21 m³ dual-auger mixer offers a carefully calibrated increase in volume for maximum feeding efficiency. It incorporates our most advanced durability features, including the proprietary monolithic NM400 augers and a chassis engineered for extreme loads, making it an ideal investment for ranches focused on scalability and long-term equipment value.

Key Specifications

Place of Origin	China, Shandong, Qingdao
Brand	UHAND
Model	2Pro-21
Volume	21 m³
Required PTO Power	≥150 hp
Number of Augers	2
Machine Weight	8000 kg
Delivery Time	30-60 days

Features & Benefits

Optimized High-Capacity Mixing: Delivers 21 m³ of mixing volume, maximizing batch size and reducing daily cycles for large-scale herd management.
Dual-Auger Precision & Speed: Two integrally cast, 20mm-thick NM400 steel augers with 16 tungsten carbide-coated blades ensure rapid, homogeneous blending for consistent herd nutrition.
Heavy-Duty Structural Integrity: Reinforced frame with 10mm sidewalls and 20mm bottom plate of NM400 steel withstands continuous high-volume use.
Robust Driveline: Requires ≥150 HP PTO, supported by heavy-duty gearbox and driveline for reliable power transmission.
Enhanced Mobility and Protection: 8.25R20x4 tires for stability, plus shot-blasted surface and 4-layer industrial paint system for corrosion resistance.

Technical Specifications

Overall Dimensions (L x W x H)	6850 x 2560 x 3100 mm
Machine Weight	8000 kg
Volume	21 m³
Required PTO Power	≥150 hp
Number of Augers	2
Auger Thickness	20 mm
Auger Speed	540/29 r/min
Number of Blades	16
Blade Material	65Mn, Tungsten Carbide Coated
Cylinder Bottom Plate Thickness	20 mm
Cylinder Side Plate Thickness	10 mm
Tire Specification & Quantity	8.25R20 x 4

Application Scenarios

Designed for elite, high-volume dairy and beef operations where incremental capacity gains directly impact labor and logistical efficiency.
Ideal for ranches that have maximized the output of 18-20 m³ mixers and seek a robust, reliable step up in daily production capability.
Perfect for operations with access to high-horsepower tractors, looking to fully utilize that power in a matching, high-capacity mixing solution.

Frequently Asked Questions

What is the key advantage of the 2Pro-21 over a 20 m³ model?

The primary advantage is the additional 1 m³ of capacity per batch. This incremental increase can significantly reduce the total number of mixing cycles required per day in a large operation, enhancing overall feeding efficiency and productivity.

Does the increased capacity affect the required mixing time?

No. The powerful dual-auger system is engineered to maintain efficient mixing cycles even at 21 m³. The increased volume is managed by the machine's robust design and power, ensuring thorough blending without a proportional increase in time.

Is this model suitable for operations with varying ration formulations?

Absolutely. The efficient dual-auger system is excellent for achieving uniformity in complex rations. For operations requiring precise ingredient management, it can be seamlessly integrated with our electronic weighing and feeding software solutions.
