Large Capacity Trailed Vertical TMR Mixer With NM400 Steel Construction

Name: Large Capacity Trailed Vertical TMR Mixer With NM400 Steel Construction
Brand: Qingdao Youhong Livestock Machinery Co., Ltd.
SKU: 2Pro-20
Availability: InStock

Brand Name:	UHAND
Model Number:	2Pro-20
MOQ:	1
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China, Shandong, Qingdao

Machine Weight:

8000 Kg

Volume:

20 M³

PTO:

≥150 Hp

Number Of Augers:

Auger Thickness:

20 Mm

Umber Of Blades:

Highlight:

Trailed Vertical TMR Mixer

Large Capacity Vertical TMR Mixer

Steel Construction tmr mixer machine

Product Description

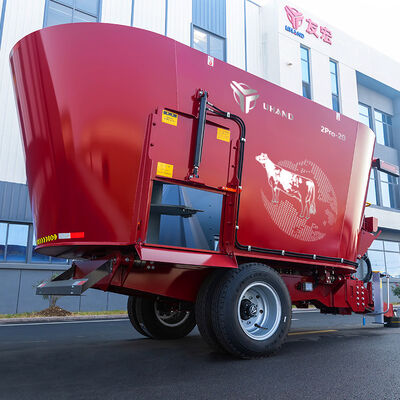

UHAND 2Pro-20 Dual-Auger Vertical TMR Mixer

20 m³ dual-auger vertical trailed TMR mixer from the Pro Series, featuring high-capacity NM400 steel construction designed for intensive livestock ranches and dairy farms.

Product Overview

The UHAND 2Pro-20 is engineered for intensive feeding operations that demand high output and unwavering reliability. This 20 m³ dual-auger mixer represents peak capacity in our core Pro series lineup, built to deliver massive batches of perfectly uniform TMR. It integrates our most durable components and manufacturing excellence, making it the cornerstone for large-scale dairies and feedlots where equipment performance directly impacts productivity and profitability.

Key Specifications

Parameter	2Pro-20
Overall Dimensions (L x W x H)	6800 x 2560 x 3050 mm
Machine Weight	8000 kg
Volume	20 m³
Required PTO Power	≥150 hp
Number of Augers	2
Auger Thickness	20 mm
Auger Speed	540/29 r/min
Number of Blades	16
Blade Material	65Mn, Tungsten Carbide Coated
Cylinder Bottom Plate Thickness	20 mm
Cylinder Side Plate Thickness	10 mm
Tire Specification & Quantity	8.25R20 x 4

Features & Benefits

High-Volume Dual-Auger Efficiency: Maximizes productivity with 20 m³ capacity using two powerful, synchronized NM400 augers for rapid and homogeneous mixing of large feed volumes.
Ultra-Durable NM400 Construction: Features proprietary 20mm thick, integrally cast augers and mixing chamber built from heavy-gauge NM400 steel for unmatched resistance to abrasive wear and structural stress.
Heavy-Duty Power & Drive Train: Engineered for tractors rated ≥150 HP PTO with robust driveline and gearbox designed for consistent, large-batch mixing.
Superior Stability & Traction: Equipped with 8.25R20x4 tires offering excellent load support, ground clearance, and traction for stable operation and transport.
Long-Lasting Corrosion Protection: Comprehensive surface treatment including shot blasting and 4-layer industrial paint system for lasting defense against corrosion.

Application Scenarios

Ideal for very large commercial dairy farms and beef feedlots with herds of 1000+ head
Perfect for operations prioritizing minimized daily mixing cycles to optimize labor and fuel efficiency
The go-to choice for ranchers requiring high-capacity, extremely durable mixers without integrated feeding systems

Frequently Asked Questions

Is this the largest mixer in your standard Pro series?

The 2Pro-20 is among our largest core models. For even greater capacity, we offer the 2Pro-21 and 2Pro-24 models, which are part of our extended Pro series lineup for the most intensive operations.

What tractor is recommended for optimal performance?

We recommend a tractor with at least 150 HP at the PTO. This ensures sufficient power to efficiently handle dense 20 m³ loads, allowing the dual-auger system to operate at its designed speed for perfect mixing.

How does the dual-auger system handle long fibrous materials?

The combination of two powerful augers and 16 cutting blades creates an aggressive chopping and blending action. This effectively processes long hay, straw, or silage, incorporating them into a uniform mix, which is essential for rumen health and feed efficiency.

Ordering Information

Place of Origin: China, Shandong, Qingdao
Brand: UHAND
Model: 2Pro-20
Minimum Order: 1 Unit
Delivery Time: 30-60 days
Payment Terms: T/T
