Single Auger TMR Mixer Machine With Double Weight Chassis High Durability

Name: Single Auger TMR Mixer Machine With Double Weight Chassis High Durability
Brand: Qingdao Youhong Livestock Machinery Co., Ltd.
SKU: Pro-16
Availability: InStock

Brand Name:	UHAND
Model Number:	Pro-16

Detail Information

Product Description

Detail Information

Place of Origin:

China, Shandong, Qingdao

Machine Weight:

5500 Kg

Volume:

16 M³

PTO:

≥140 Hp

Number Of Augers:

Auger Thickness:

20 Mm

Number Of Blades:

Highlight:

single Auger TMR Mixer Machine

high Durability TMR Mixer Machine

single Auger tmr feed mixer

Product Description

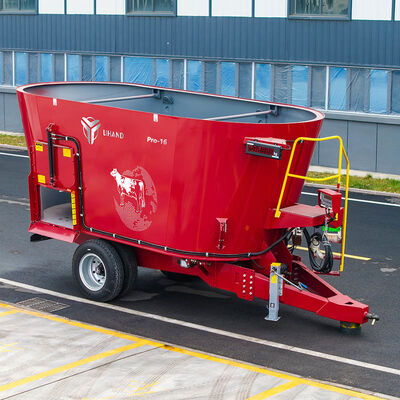

16 m³ Single-Auger Vertical Trailed TMR Mixer, Pro Series

Engineered for large-scale feeding operations, the UHAND Pro-16 delivers a 16 m³ capacity with a focus on strength and reliability. Its heavy-gauge NM400 steel construction and powerful single-auger design are built to withstand continuous use. It requires greater tractor power (≥140 hp), positioning it as a core asset for ranches focused on efficiency and throughput for large herds.

Product Information

Place of Origin:

China, Shandong, Qingdao

Brand:

UHAND

Model:

Pro-16

Min. Order:

1 Unit

Delivery Time:

30-60 days

Payment Terms:

T/T

Key Features & Benefits

Large-Batch Efficiency: Maximizes productivity by preparing 16 m³ of uniform TMR per batch, reducing total daily mixing cycles.
Professional-Grade Durability: Robust NM400 steel fabrication and 20mm thick auger ensure long service life in high-demand environments.
Optimized for High Power: Designed to harness the power of ≥140 hp tractors, ensuring consistent performance with dense ration formulations.
Superior Traction & Load Capacity: Larger 8.25R16×4 tires provide enhanced ground clearance, load-bearing capacity, and traction.
Precision Mixing System: Heavy-duty auger with 11 carbide blades achieves thorough blend critical for herd health and performance.
Built for Scale: Every aspect designed to meet the time and durability demands of feeding hundreds of cattle daily.

Technical Specifications

Parameter	Pro-16
Overall Dimensions (L x W x H)	5000 x 3000 x 3250 mm
Machine Weight	5500 kg
Volume	16 m³
Required PTO Power	≥140 hp
Number of Augers	1
Auger Thickness	20 mm
Auger Speed	540/30 r/min
Number of Blades	11
Blade Material	65Mn, Tungsten Carbide Coated
Cylinder Bottom Plate Thickness	20 mm
Cylinder Side Plate Thickness	10 mm
Tire Specification & Quantity	8.25R16 x 4

Application Scenarios

Large commercial dairy farms or beef feedlots with significant daily feed requirements
Operations where equipment uptime and batch size are critical to operational economics
Ranches that have already invested in higher-horsepower (140+ hp) tractors

Frequently Asked Questions

What does "double-weight chassis" mean for me?

It means exceptional durability and stability. The reinforced frame resists twisting and fatigue, ensuring reliable performance and a much longer service life under heavy loads.

Why does it need ≥140 HP?

This ensures your tractor has enough power to efficiently drive the heavy-duty auger and fully mix dense 16 m³ batches, preventing overload and ensuring optimal performance.

Are the larger 8.25R16 tires important?

Yes. They offer a higher load capacity and better flotation on soft ground, perfectly matching the mixer's heavy-duty design and improving field mobility.

How does your paint process protect my investment?

Our shot blasting and 4-layer paint system create a durable barrier against rust and abrasion, significantly prolonging the equipment's life and appearance.
