10m³ Vertical TMR Mixer Superior Stability For Large Livestock Ranches

Name: 10m³ Vertical TMR Mixer Superior Stability For Large Livestock Ranches
Brand: Qingdao Youhong Livestock Machinery Co., Ltd.
SKU: Flex-10
Availability: InStock

Brand Name:	UHAND
Model Number:	Flex-10
MOQ:	1
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China, Shandong, Qingdao

Highlight:

10m³ Vertical TMR Mixer

Vertical TMR Mixer Superior Stability

Superior Stability tmr mixer wagon

Product Description

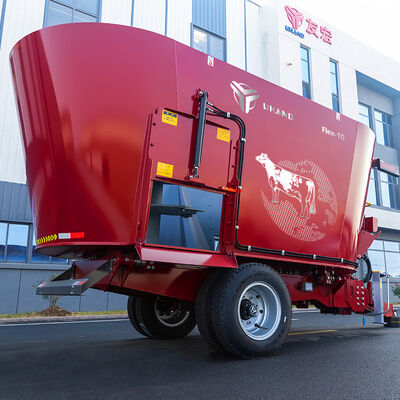

UHAND Flex-10: 10 m³ Single-Auger Vertical TMR Mixer

Designed for large-scale livestock ranches and dairy farms, this high-capacity trailed TMR mixer features 4-wheel stability and NM400 steel monobloc auger construction for superior performance and durability.

Product Overview

The UHAND Flex-10 is engineered for demanding large-scale ranch operations. Built with a rugged single-auger system constructed from NM400 wear-resistant steel and equipped with durable tungsten carbide-coated 65Mn blades, this mixer delivers reliable performance. The innovative four-wheel configuration ensures enhanced stability and optimal weight distribution for safe transport and operation under heavy loads.

Key Features & Benefits

Superior Stability: Four-wheel design provides excellent balance and ground contact for safer towing and stable operation on uneven terrain
Exceptional Durability: Industry-leading one-piece NM400 steel auger ensures long-lasting performance and reliability
High-Capacity Performance: Compatible with tractors rated ≥100 HP PTO for thorough mixing of dense, full-capacity rations
Comprehensive Protection: Standard surface treatment includes shot blasting and professional 4-layer paint system for maximum exterior durability

Technical Specifications

Parameter	Flex-10
Overall Dimensions (LWH) (mm)	435025403000
Machine Weight (kg)	3500
Volume (m³)	10
Required PTO Power (hp)	≥100
Number of Augers	1
Auger Thickness (mm)	16
Auger Speed (r/min)	540/29
Number of Blades	7
Blade Material	65Mn, Tungsten Carbide Coated
Cylinder Bottom Plate Thickness (mm)	20
Cylinder Side Plate Thickness (mm)	8
Tire Specification & Quantity	7.5R16*4

Ideal Applications

Large dairy and beef operations requiring stable, high-volume mixing solutions
Ranches operating on varied terrain where equipment stability and transport safety are critical
Farms utilizing larger tractors to maximize batch size and operational efficiency

Frequently Asked Questions

Is this equipment suitable for sheep or other livestock?

Yes, but feed formulas and mixing parameters need adjustment based on feed type and particle size.

Why does the Flex-10 have four wheels instead of two?

The four-wheel configuration provides greater stability and weight distribution when fully loaded to its 10 m³ capacity, enhancing safety during transport and operation, especially on uneven ground.

Are the blades replaceable?

Yes, the blades feature a modular design for quick replacement.

Is custom color or branding supported?

Yes, we offer custom paint colors and logo application services.

What is the advantage of the four-wheel configuration on the Flex-10?

The four-wheel setup significantly improves load distribution and towing dynamics. It reduces point loads on the tractor hitch, enhances safety on slopes or soft ground, and provides greater overall stability when the mixer is at full capacity, making it an ideal choice for large-scale, high-volume work environments.

Ordering Information

Place of Origin: China, Shandong, Qingdao
Brand: UHAND
Model: Flex-10
Minimum Order: 1 Unit
Delivery Time: 30-60 days
Payment Terms: T/T
